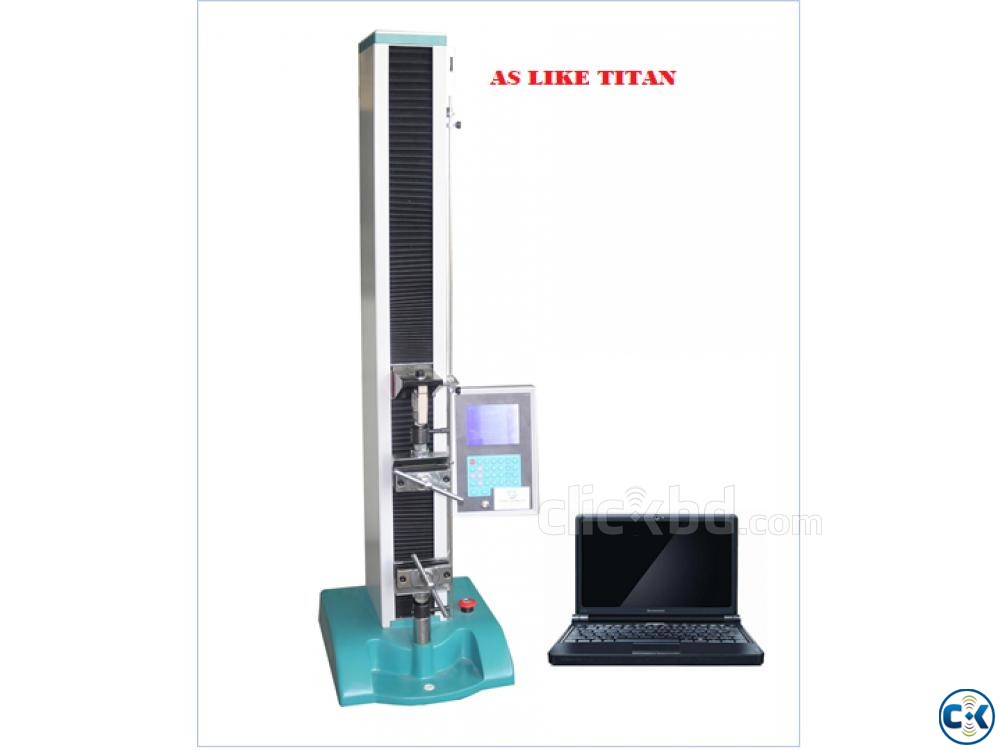

Textile and Yarn Tensile Tester is a new generation of tester with innovative design, convenient using, excellent performance and pleasing apperance, this tester is special deigned in testing textile and Yarn. Meet Standards: ISO13934.1, ISO13934.2, ISO13937.2, ISO9073.4, ISO13936.1, ISO13936.2, ISO13935.1, ISO13935.2, ISO 2062, ASTM D2256 ASTM D5034, ASTM D5035, ASTM D2261, ASTM D5587, ASTM D3936, ASTM D4964, ISO 9073.3, ISO 9073.5..................ETC.
Test Function: Constant Speed Tensile Test Peeling Test Tearing Test Seam Slippage Test Bursting Test Definite Elongation Test Load Test Definite Load Test Elongation Test Elastic Recovery Test Yarn Strength Test Features: Working pattern: CRE principle, controlled by large LCD, equipped with an online interface, can be also controlled by computer with professional textile and yarn testing software., real time display graphs, breaking load, elongation, with PC powerful analysis system, also can give yield load, yield elongation, CV% of load...etc. Adopt Imported sensor from American Tedea. AC servo drive, ball screw, to do a wide range speed setting, suitable for all kinds of material mechanical performance testing. Dual control, LCD panel control and computer control. According to the customer need to provide a variety of standard test functions, can also be customized according to customer requirements. With different clamps can perform different test perfectly. All testing results and graphs can be output into Excel and be printed accordingly. With the protective function of overload, over current, over voltage, displacement upper and lower limitation, also with emergency stop. Multi Unit is selectable: CN, N, Lb, g, Kg, mm, Inch Hot Line: 01975804900-6, 01713-063995 |
