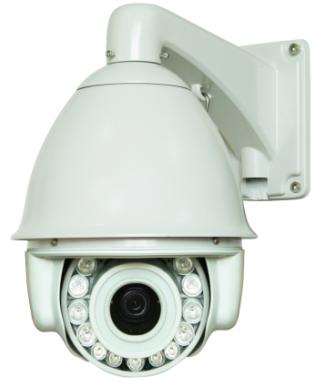

CamPro, CB -23X-150IR CCTV PTZ Camera

Module: Grow Vision 23X Effio-E module
Image Device : 1/3” SONY Ex-view HAD CCD
Horizontal Resolution : 650TVL(Day) 700TVL(Night)
Lens Optical : f=3.9mm-89.7mm
IR Cut :IR-Cut D/N: Auto Cut / Successive Cut ; 850nm IR Transmission ≥85%
Optical Zoom :23X Optical Zoom
Min. Illumination :Color: 0.2Lux (Normal) , B/W: 0.01Lux (Real Time) S/N ≥52DB
Shutter Speed : Auto / 1/50 ~ 1/10,000 Sec
Image Support : (Horizontal)
Backlight: (On/Off) / (HSBLC)
Gain : Control (0-15) Adjustable
White Balance : Auto / Manual / Indoor / Outdoor
2D DNR : On / Off
Protocol :WX Protocol (Compatible LG LVC-M3XX Series)
Focus : Auto / Keyed Automatic
Video Output : 1 Vp-p , (75 ohms, Composite Video)
OSD : Chinese / English
I/O Interface: 9Pin Interface（1，3，5，7 Pins Earth Connection; 2:AD-Key；4：Video Output；6：Power
Supply；8：Protocol TXD；9：Protocol RXD）
Temperature : -15~65℃
Campro Dimension : 50(W) x 53(H) x 87.5(D) mm
Weight : 230g
Consumption : ≤2.8W
Voltage : DC12V
