urgent sale JDS c5 headphone amplifier contact-01981081699

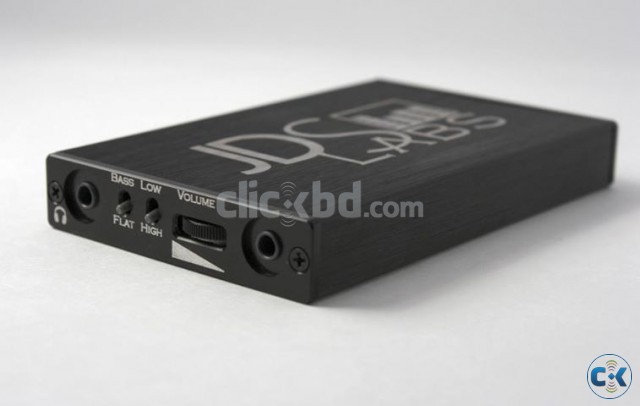

JDS LABS C5 BLACK HEADPHONE AMPLIFIER
BRAND NEW INTACT

Audibly Perfect Channel Balance
Digital stepped attenuation with zero-crossing detection and 1dB attenuation steps provide smooth volume adjustment at all volume levels, even with sensitive IEMs.

DC Coupled Signal Path
C5 uses a purely resistive signal path. Thin film, 0.1% tolerance resistors ensure low noise and high channel accuracy.

Dual LDO Power Regulation
High performance audio starts with clean power. Supply rails are filtered by impressive TPS7A4700 and TPS7A3301 regulators to achieve ultra low supply noise at a constant output voltage of+/-7V.

Smart USB Charging
Powered by a large 1200mAh Li-Ion battery, C5 quickly charges from any USB port (computer, tablet charger, cell phone charger, etc.). A single LED indicates battery status: solid green while on, blinking while battery is low, or blue while charging.
Note: Actual color varies with lighting conditions and may differ from your screen.
Digital Stepped Attenuation (63 steps + mute)
Dual Gain: 2.3x or 6.5x, MOSFET controlled
Bass Boost: +6.5dB @ 80 Hz
20 Minute Low Battery Indication
0.1% Thin Film Resistors
1200mAh, 3.7V Li-Ion Battery
Ultra Low Noise +/-7V rails, NO power degredation
3.5mm Input and Output Jacks
Gold Immersion, 4-Layer Printed Circuit Board
Atmega168A MCU w/Opensource Arduino Firmware

Frequency Response : +/- 0.02 dB
THD+N (20-20kHz, 150 Ω): 0.0009%
THD+N (20-20kHz, 32 Ω): 0.0045%
Noise: -105 dBu
Crosstalk @ 150 Ω: -67 dB
Inter-channel Phase @ 1kHz: +/- 0.01°
Channel Balance: +/- 0.55 dB, all volume positions
Max Output @ 600Ω: 4.146 VRMS
Max Output @ 150Ω: 3.337 VRMS
Max Output @ 32Ω: 1.010 VRMS
Power Supply: 14.0 Vpp
Output Impedance: 2.2 Ω
Battery Run Time: 11-14 Hours*
Charge Time: 2 Hrs to 80%, < 4 Hrs to 100%
Operating Temp: –40°C to 85°C
Operating Humidity: 0 to 85% Rel. Humidity
Dimensions (excluding switches): 99.5 x 61.5 x 14.0 mm (LxWxH)
Weight: 4.2 ounces

Test Equipment: PrismSound dScope Series III audio a

C5 Headphone Amplifier
USB 2.0 Mini B Cable
Rubber Bumper Feet
