Raspberry Pi Model B

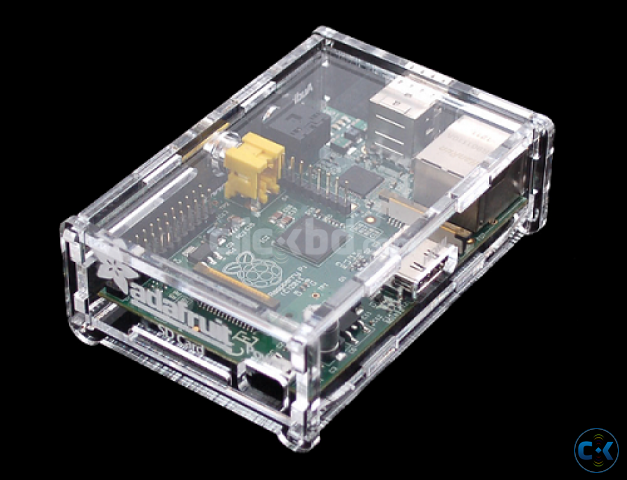

Raspberry PI with Casing and Heat sink.

This is the new version of the Raspberry Pi* released 10/15/12 with 512mb of RAM, this bundle includes our excellent Getting Started with Raspberry Pi book.

Have you heard about the Raspberry Pi? No, it isn't a type of dessert, it's a credit-card sized computer that plugs right into your TV. It has many of the capabilities of a traditional PC and can be used for word-processing, spreadsheet, and games. It can even play high-definition video! The board was developed by the Raspberry Pi Foundation with the intention of bringing low-cost, easy to program computers to developing countries and children.

The system is based on the Broadcom BCM2835 system on a chip which features an ARM1176JZF-S 700MHZ processor. It has an onboard VideoCore IV GPU capable of High-Definition video playback and has 512 megabytes of RAM. An SD card (4GB SDHC recommended, not included) is used for booting and long term storage as the design does not include any built-in storage. The system is intended to run Linux based operating systems.

The model B boards feature 512MB of RAM and a 10/100 Ethernet controller. We are selling the Revision 2 version. You'll need to supply your own USB keyboard, mouse, display, HDMI cable, USB A to Micro cable, 1.0A 5V USB power supply, SD card (4GB recommended), and RPi compatible Linux distribution. Alternatively, you can also purchase our Raspberry Pi Starter pack and only have to supply your own USB keyboard and mouse. Check out the How To: tab for additional information. *Raspberry Pi is a trademark of the Raspberry Pi Foundation. Pi's not sold individually.

Features:

SoC = Broadcom BCM2835
CPU = 700 MHz ARM 1176JZF-S
GPU = Broadcom VideoCore IV supporting OpenGL, MPEG-2, 1080P, h.264/MPEG-4 AVC
RAM = 512 MB RAM
USB = 2 - USB 2.0 ports
Video outputs = Composite RCA and HDMI
Audio outputs = 3.5mm and HDMI
Onboard storage = SD/MMC/SDIO card slot (4GB recommended)
Onboard network = 10/100 RJ-45
Low-level peripherals = 8 × GPIO, UART, I²C bus, SPI bus with two chip selects, +3.3 V, +5 V, ground
Power rating = 700 mA (3.5 W)
Power source = 5 volt via MicroUSB or GPIO header for power (1.0A recommended)
Size = 85.60mm × 53.98mm (3.370 × 2.125 in)
Weight = 45g (1.6oz)
Includes Getting Started with Raspberry Pi book
