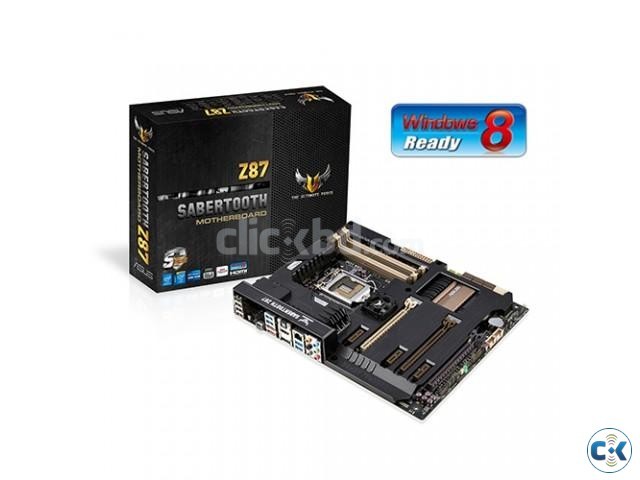

ASUS SABERTOOTH Z87 & INTEL 4770K HASWELL BY SAYED

BRAND NEW INTAKE BOX

MOTHERBOARD
CPU
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel® Z87
Memory
4 x DIMM, Max. 32GB, DDR3 1866/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics Processor
Multi-VGA output support : HDMI/DisplayPort ports *1
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Multi-GPU Support
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 2.0 x16 (x4 mode, black)
3 x PCIe x1
Storage
Intel® Z87 chipset :
6 x SATA 6Gb/s port(s), brown
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology
ASMedia® ASM1061 controller : *2
2 x SATA 6Gb/s port(s), beige
ASMedia® ASM1061 controller : *2
2 x eSATA 6Gb/s port(s), red
LAN
Intel® I217V, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
USB Ports
Intel® Z87 chipset :
6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® Z87 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)
Special Features
TUF ENGINE! Power Design :
- 8 +2 Digital Phase Power Design
- TUF Components (Alloy choke, Ti-Cap. & MOSFET; certified by military-standard)
Ultimate COOL! Thermal Solution :
- TUF Thermal Armor with Flow Valve
- TUF Thermal Radar 2
Safe & Stable! Guardian Angel :
- Dust Defender
- TUF Fortifier
ASUS Exclusive Features :
- Remote GO!
- USB BIOS Flashback
- MemOK!
- AI Suite 3
- Ai Charger
- ESD Guards
- Front Panel USB 3.0 Support
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS EZ DIY :
- DirectKey
- Precision Tweaker 2
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Operating System Support
Windows® 8
Windows® 7
Back I/O Ports
1 x DisplayPort
1 x HDMI
2 x eSATA 6Gb/s
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, moss green)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
2 x Assistant Fan connector(s) (2 x 3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
3 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
Accessories
User's manual
Accessory Guide
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
2 x Accessory Fan(s) ( 35 mm )
1 x TUF Certification card(s)
1 x TUF 5 Year Warranty manual(s) (by region)
1 x TUF Inside sticker(s)
1 x Accessory Package(s):
- 1 x 40mm I/O Cover fan lid(s)
- 3 x PCIe x16 slot dust cover(s)
- 2 x DRAM slot dust cover(s)
- 3 x PCIe x1 slot dust cover(s)
- 2 x Short fan screw(s)
- 4 x Long fan screw(s)
- 1 x Adhesive Sponge(s) for 35mm Fan
- 3 x Thermistor cable(s)
- 1 x back I/O dust frame
- 1 x back I/O dust grid
- 1 x connector dust cover collection (On board USB 3.0, DVI, HDMI, DP, LAN)
- 2 x On board USB 2.0 connector dust cover(s)
- 8 x back I/O USB 2.0 connector dust cover(s)
- 7 x On board SATA connector dust cover(s)
- 2 x eSATA Connector dust cover(s)
- 6 x Audio connector dust cover(s)
BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE
Support Disc
Drivers
ASUS Utilities
ASUS/TUF CPU-Z
Anti-virus software (OEM version)
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
*1:DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
*2: These SATA ports are for data hard drivers only. ATAPI devices are not supported.

LINK- http://www.asus.com/Motherboards/SABERTOOTH_Z87/


PROCESSOR 4700K CORE I7 HASWELL
Product Name
Intel® Core™ i7-4770K Processor (8M Cache, up to 3.90 GHz)
Code Name
Haswell
-
Essentials
Status
Launched
Launch Date
Q2'13
Processor Number
i7-4770K
# of Cores
4
# of Threads
8
Clock Speed
3.5 GHz
Max Turbo Frequency
3.9 GHz
Cache
8 MB
# of QPI Links
1
Instruction Set
64-bit
Instruction Set Extensions
SSE 4.1/4.2, AVX 2.0
Embedded Options Available
No
Lithography
22 nm
Max TDP
84 W
Thermal Solution Specification
PCG 2013D
Recommended Customer Price
TRAY: $339.00
BOX : $350.00
-
Memory Specifications
Max Memory Size (dependent on memory type)
32 GB
Memory Types
DDR3-1333/1600
# of Memory Channels
2
Max Memory Bandwidth
25.6 GB/s
ECC Memory Supported ‡
No
-
Graphics Specifications
Processor Graphics
Yes
Graphics Model
Intel® HD Graphics 4600
Graphics Base Frequency
350 MHz
Graphics Max Dynamic Frequency
1.25 GHz
Intel® Quick Sync Video
Yes
Intel® InTru™ 3D Technology
Yes
Intel® Insider™
Yes
Intel® Wireless Display
Yes
Intel® Clear Video HD Technology
Yes
# of Displays Supported ‡
3
-
Expansion Options
PCI Express Revision
3.0
PCI Express Configurations ‡
Up to 1x16, 2x8, 1x8/2x4
Max # of PCI Express Lanes
16
-
Package Specifications
Max CPU Configuration
1
TCASE
72.72°C
Package Size
37.5mm x 37.5mm
Graphics and IMC Lithography
22nm
Sockets Supported
FCLGA1150
Low Halogen Options Available
See MDDS
-
Advanced Technologies
Intel® Turbo Boost Technology ‡
2.0
Intel® vPro Technology ‡
No
Intel® Hyper-Threading Technology ‡
Yes
Intel® Virtualization Technology (VT-x) ‡
Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
No
Intel® VT-x with Extended Page Tables (EPT) ‡
Yes
AES New Instructions
Yes
Intel® TSX-NI
No
Intel® 64 ‡
Yes
Intel® Anti-Theft Technology
Yes
Idle States
Yes
Enhanced Intel SpeedStep® Technology
Yes
Thermal Monitoring Technologies
Yes
Execute Disable Bit ‡
Yes
Intel® Secure Key
Yes
Intel® Identity Protection Technology ‡
Yes
LINK- http://www.intel.com/content/www/us/en/benchmarks/desktop/4th-gen-core-i7-4770k.html?wapkw=4770k

warranty= Motherboard asus sabertooth z87 3year / processor intel 4770k 3year

PRISE= 55600 DAM FIXED

Contact= 01915972749

EMAIL= [email protected]

THX SAYED.
