Finger Print Time attendance System

Bio Lite Net,
Suprema Bio Lite Net,
Suprema Finger Print Access Control,
Bio-Matric Time Attendance,

Specification.

Secure door control and I/O expansion (secure reader mode)

CPU 400MHz DSP

Memory 8MB flash + 16MB RAM

Fingerprint Sensor 500 dpi optical sensor

Identification Speed 2,000 matches in 1 second

Fingerprint Capacity 5,000 fingerprints (10,000 templates)

Log Capacity 50,000 events

RF Card Mifare (13.56 MHz)

Authentication Finger / PIN / Card

Network Interface TCP/IP, RS485

Wiegand 1 channel (input/output switchable)

TTL I/O 2 inputs for exit switch and door sensor

Internal Relay Deadbolt, EM lock, door strike, automatic door

Ingress Protection Rate IP65 class

LCD 128 x 64 pixel, black & white

Keypad 3 x 4 keypad, 3 navigation keys

Sound and Interface Multi-color LED and multi-tone buzzer

Operating Voltage 12VDC

Size 60 x 185 x 40 mm (W x H x D)

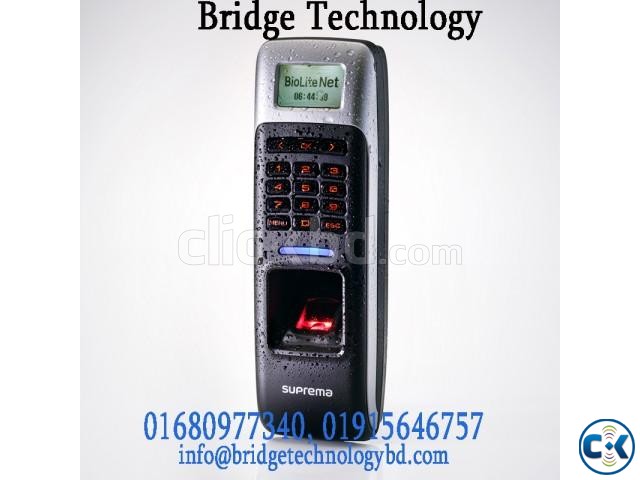

B i o L i t e N e t

fingerprint terminal with time attendance and access control capability. With rugged IP65 rated

waterproof structure, it offers extra durability and it’s perfect for outdoor installation. From simple

door control to complex networked environment, BioLite Net supports full functionality of time

attendance and access control. All features comes in an elegantly designed, slick and slim device.
