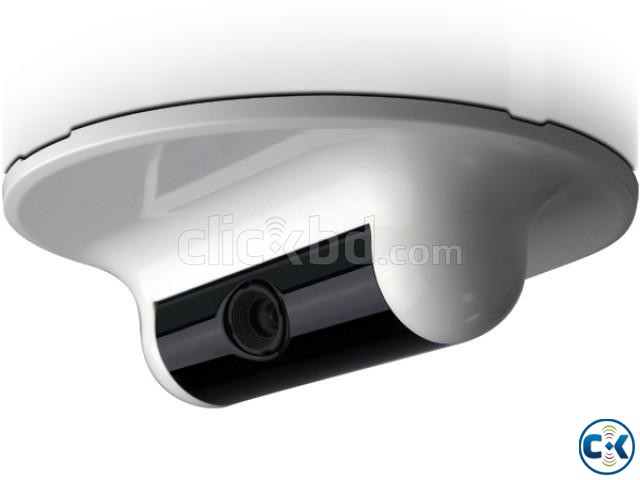

AVTECH AVC492A

Resolution 600TVL Super High Resolution▼ GeneralPick-up Element 1/3″ H.R. Color CCD image sensor with SONY Effio DSPNumber of Pixels 768(H) x 494(V) / 752(H) x 582(V)) Min. Illumination 1. 0.1 Lux / F1.9; 0 Lux (IR ON) 2. 0.05 Lux / F1.5; 0 Lux (IR ON)S/N Ratio More than 48dB (AGC off)Electronic Shutter 1/60 (1/50) to 1/100,000 sec.Lens 1. f4.57mm / F1.9 2. f3.8mm / F1.5Lens Angle 1. 60° 2. 84.5°IR LED 12 unitsIR Effective Distance Up to 10 metersSmart Light Control YESVideo Output 1.0 Vp-p composite, 75ΩPower Source (±10%) DC12V / 500mACurrent / Power consumption (±10%) 60mA (IR OFF), 160mA (IR ON)Dimensions (mm) 130(ψ) x 37(H)
