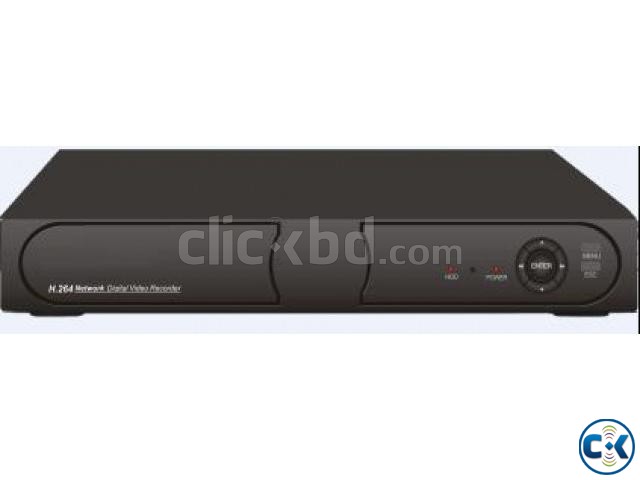

Campro CB-HDR -6008 DVR

※ VGA output resolution is 1024*768/1280*1024/1366*768/1920*1080 ※ Support Multi language OSD
※ CMS support view
※ Support mobile OS: iPhone iPad Android
※ Each DVR support 10 users viewing at same time
※ Support P2P & iCloud function
Channel & Compression 4CH H.264 8CH H.264 Video input 4CH BNC 8CH BNC Audio Input 1ch RCA CVBS Output 1ch BNC HDMI Output Options VGA Output 1ch Audio Output 1ch System format PAL/NTSC
Recording resolution
CIF PAL(352*288) / NTSC(352*240)
D1 PAL(720*576) / NTSC(720*488) Frame rate 4ch CIF(352*288)*25fps 8ch CIF(352*288)*25fps 4ch D1(720*576)*25fps 4ch D1(720*576)*25fps
Image quality
high 1、high 2、Middium、Low 1 Stream rate CIF（352*288）192-1024Kb/s D1（720*576）384-2048Kb/s
Type of stream rate
Adjustable/fixed Audio compression G.711A
Audio stream rate
64Kbps Playback mode 4ch playback simultaneously 8ch playback simultaneously
HDD
5000GB*1 USB port 2 x USB2.0
Backup mode
DVD-RW/U Disk/Network/External HDD
Campro
Network Fix IP/DHCP/UPNP
Network port
10M/100M/1000M RS485 Not Support
RS232
Not Support Alarm input Not Support
Alarm output
Not Support Language 17 language selectable
Baud rate
8 types PTZ protocol 40 types
Detection area
396 area Upgrade type U Disk/Network
pppoe
support P2P support DDNS server supported （dvr server DDNS）（no-ip ddns/privaate ddns/sysdns ddns/ DynDNS
/ CN99.org） Time adjustment Support Dimension 300x220x45 (mm)
