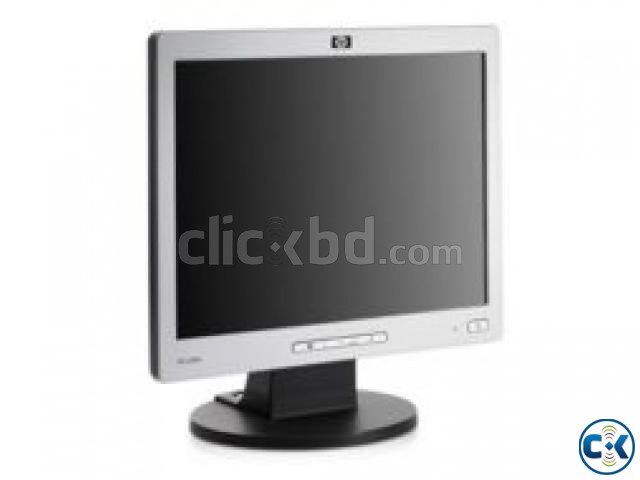

HP L1506 Flat Panel Monitor

Product Features

Features

Type
Thin-Film Transistor (TFT)
Cabinet Color
Carbon/Silver
Size / Viewable Image Size (diagonal)
38 cm (15 in) maximum viewable
Native Resolution: 1024 x 768 @ 60 Hz
Signal Input: 15-pin D-sub (analog VGA)
Horizontal Viewing Angle: 130 degrees
Vertical Viewing Angle:100 degrees

Image Quality
Brightness (typical): 250 nits (cd/m2)
Contrast Ratio (typical): 450:1 (typical)
Pixel Pitch: 0.297 mm
Horizontal Frequency Range: 30 to 61 kHz
Vertical Frequency Range: 56 to 76 Hz

Ease of Use
User Programmable Modes: 10
Plug and Play: Yes
On-Screen Controls: Image Control (auto, horizontal, vertical), Positioning (vertical and horizontal), Color Temperature (6500k, 9300k, Custom), Brightness, Contrast, Clock, Clock Phase, Monitor Management (power saver, sleep), Factory Reset
Language Selection: Yes
Asset Control: Yes
Resolution: 1024 x 768 60 Hz, 70 Hz, and 75 Hz
800 x 600 60 Hz, 72 Hz, and 75 Hz
640 x 480 60 Hz, 72 Hz, and 75 Hz

Ergonomic Features
Anti-Glare/Anti-Static: Yes/Yes
Tilt/Swivel: Yes/No
Tilt Angle: -5 degrees to +30 degrees

Approvals / Certifications
MPR-II Compliant: Yes
ISO 9241-3,7,8 VDT guidelines, ISO 13406-2 pixel defect guidelines: Yes
Energy Star Compliant: Yes
FCC Approval: Yes
TCO '99 Certified: Yes
UL Approval: Yes

Hardware Features
Sync Input: TTL separate synch
Dimensions without stand (HxWxD): 35.5 x 34.0 x 20.3 cm (13.9 x 13.4 x 7.9 in)
Weight unpacked: 3.2 kg (7.05 lb)
Weight packaged: 4.5 kg (9.92 lb)
Accessories: Attached VGA cable, AC power cable
