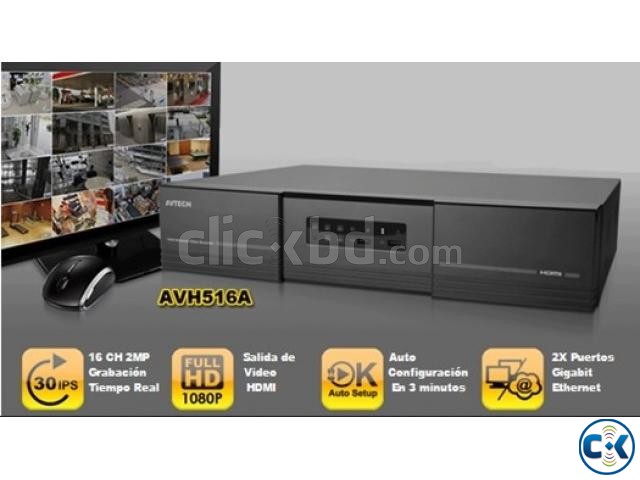

AVTECH AVH516A HD NVR SOLUTION

Being one of the most powerful Network Video Recorders on the market to date, the AVH516A is capable of recording up to 16 IP cameras at 2MP in real-time! It features AVTech’s Smart Recording technology allowing the option to record in D1 quality and automaticcally switch to higher video resolution when an event is detected. Remote access is supported across multiple platforms including smartphones that have the free app EagleEyes. This NVR can support up to 9 TB’s of internal storage, while also allowing users the option of connecting up to a 4 bay disk array with RAID 0 & 1. Many other features make this NVR the perfect addition for your next IP installation.

Video
Video Compression Format H.264
Video Input One LAN port(up to 16 IP cameras)
Video Output (Full HD) HDMI
Video Output Resolution 1920 x 1080
Record & Backup
Recording Mode Manual / Event / Alarm / Schedule
Pre-Alarm Recording Yes
Quick Search Time / Event
Audio
Audio Output Yes
General
Hard Disk Storage Three 3TB hard disks
SATA Interface Yes
eSATA Interface Yes
USB Mouse Control Yes
Alarm I/O Yes
IR Remote Control Yes
Event Notification Push Status / Video Mail / Message Mail
User Level Multiple user access levels with password
Operating Temperature 10℃ ~ 40℃
Power Source (±10%) DC 19V / 3.42A
Network
Ethernet LAN port: 1000Mbps / Internet (WAN) port: 1000Mbps
PC Surveillance
Compatible Operating System Windows 7 / Windows Vista / Windows XP
Compatible Program Video Viewer for Windows operating system
Minimum System Requirements - AGP graphics card, Direct Draw 32MB RAM
- Windows 7, Vista & XP
- DirectX 9.0 or later
- Internet Explorer 7.x or later
- Intel core i3 or higher, or equivalent AMD
- 2GB RAM
Mobile Surveillance
Compatible Devices EagleEyes on iOS / EagleEyes on Android
Others
AVTECH Free DDNS Service Yes
Recording Throughput(16CH mode) Up to 480 IPS@1920 x 1080, Up to 12Mbps
