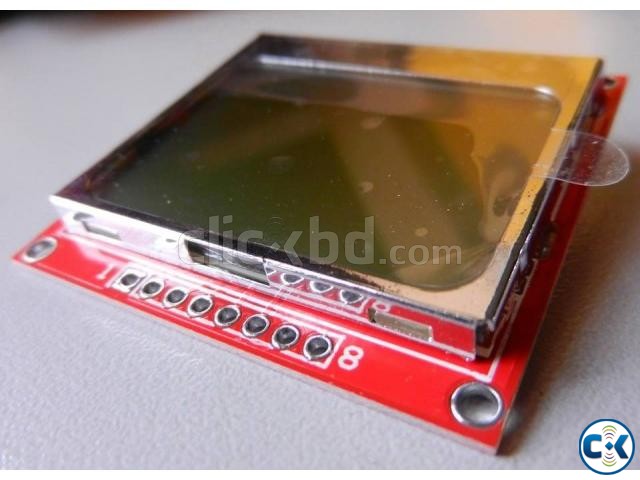

84*48 Nokia 5110 LCD Module with White Back light

FEATURES
· Single chip LCD controller/driver
· 48 row, 84 column outputs
· Display data RAM 48 ´ 84 bits
· On-chip:
Generation of LCD supply voltage (external supply
also possible)
Generation of intermediate LCD bias voltages
Oscillator requires no external components (external
clock also possible).
· External RES (reset) input pin
· Serial interface maximum 4.0 Mbits/s
· CMOS compatible inputs
· Mux rate: 48
· Logic supply voltage range VDD to VSS: 2.7 to 3.3 V
· Display supply voltage range VLCD to VSS.
