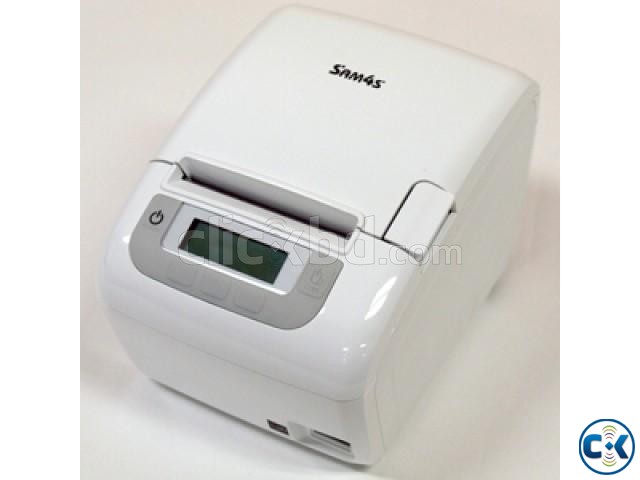

POS Printer ELLIX45

Specification:
RINTING METHOD

Direct Thermal line printing

Mono Paper 80mm

Max. 220mm/sec

(52 line/sec)

Mono Paper 58mm

Max. 150mm/sec

(36 line/sec)

Two Color Paper

Max. 100mm/sec (24 line/sec)

RESOLUTION

180 DPI

Mono Paper 80mm

Max. 72.0mm

Mono Paper 58mm

48mm(Max. 54mm)

Font A

Font A

Domestic

24*24

Foreign

12*24

Font B

Font B

Domestic

16*16

Foreign

9*17

Font A

Font A

Domestic

21(80mm)/15(58mm)

Foreign

42(80mm)/30(58mm)

Font B

Font B

Domestic

28(80mm)/20(58mm)

Foreign

56(80mm)/40(58mm)

CHARACTER SET

95 Alphanumeric, 37 International,128*11 Graphic ,

Loading

Drop-In Type

Demension

Max. 58.0/80.0 x ¦83.0mm

Thickness

0.06~0.08 mm

AUTO CUTTER

Guillotine Type(Jamfree)

PGM Memory

4MB

Data Memory

8MB

Data Buffer(Domestic&Foreign;)

64 KB

Mechanism(MCBF)

70,000,000 lines

TPH

1x108 Pulse, 150 Km

Auto cutter

1,500,000 cut

BAR CODE

UPC-A, UPC-E, EAN8, EAN13, Code 39, Code 93, Code 128, ITF,

CODABAR, PDF417, QR Code

DRIVER

Windows 98/ 2000/ XP/ Vista(*86)/ 7/ 8, 2003 Server Driver, OPOS Driver

DRAWER PORT

2 PORT (+24V)

INTERFACE

USB ONLY

POWER SUPPLY

SMPS Adapter/IN: AC 90~264V /OUT: DC 24V 2.5A

Paper Near End

YES(STAND and WALL)

Paper End

YES

Cover Open

YES

OVERALL DIMENSION(WITH FOOT RUBBER)

144(W) x 195(L) x 137(H)mm

Net(only set)

3.0 Kg

with packing

3.4 Kg

EMC

EMC

Domestic

CE marking,MIC

Foreign

FCC class A, CE marking

Safety

TUV/GS,CE,CB,cTUVus

BODY COLOR

Dark Gray or IVORY

EMULATION

Epson, Star

TWO COLOR PRINTING

YES

Temperature

Temperature

Operating

5¡É ~ 45¡É

Storage

-10¡É ~ 50¡É

Operating

30% ~ 80%(RH)

Storage

10 ~90%(RH) : Except for Paper

Wall mount kit

YES

Paper seperater(58.0mm)

YES

Kitchen Bell

YES

LCD Display

YES

Splash Cover
