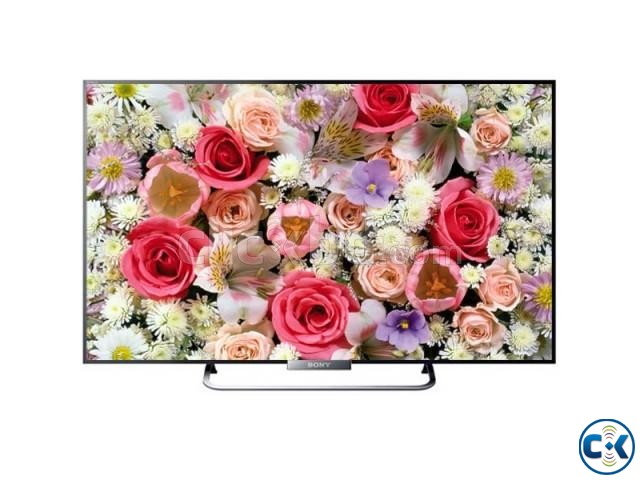

60 in SONY BRAVIA R550 FULL HD 3D LED TV—

Product Specifications
Limited Warranty
• 3D Features
o 3D Format Support : HDMI: Frame Packing/Side-By-Side/Over-Under USB/MHL: Side-By-Side/Over-Under
o Simulated 3D : Yes
o 3D : Passive
• Audio
o Audio Power Output : 10W + 10W
o Speaker Configuration : Full Range (45x200mm) x2
o Speaker Position : Bottom
• Audio Features
o Alternate Audio (Digital) : Yes
o Sound Mode : Standard ; Music ; Cinema ; Game ; Sports
o Invisible Speaker : Yes
o Sound Booster : Yes
o Stereo System : MTS(AUTO SAP)
o 5.1ch Through Out (Handycam) : Yes
o Audio Out : Variable/Fixed
o Dolby® : MS10 (Dolby Digital Plus, Dolby Pulse)
o 5.1 Channel Audio Out : Yes
o SteadySound® Automatic Volume Control : Yes
•
o Max Qty of carton stacking (vertical) : 6
• Convenience Features
o Picture Adjustments Lock : Yes
o On/Off Timer : Yes
o Auto Shut-off : Yes
o On-Screen Display for External Input : Yes
o Info Banner : Yes
o Parental Control : Yes
o Channel Block (with password) : Yes
o BRAVIA® Sync™ : Yes
o Twin Picture : PAP(Fixed),PIP
o USB Play (Contents) : MPEG1/ MPEG2TS/ MPEG2PS/ MPEG4Visual/ MPEG4AVC/ H.264/ WMV/ Xvid/ MP3/ AAC/ HE-AAC/ DolbyDigitalAC3/ DTS/ WMA/ Jpeg
o Scene Select : Music ; Cinema ; Game ; Graphics ; Sports
o Show/Hide Channels : Yes
o Photo Frame Mode : Yes
o USB Super Multi-Format Play : Yes
o Favorites (Simple UI) : Yes
o Label Inputs : Yes
o USB Play : Yes
o Channel Jump : Yes
o On-Screen Clock : Yes
o Edit Channel Labels : Yes
o Channel Surf : Yes
o Multiple Language Display : English/Spanish /French
o Sleep Timer : Yes
o Input Skip : Yes
• Design Features
o Stand Design : Steel Rod / Chrome Plating
• Display
o Screen Size (measured diagonally) : 60"(60")
o Display Resolution : Full HD
o Viewing Angle (Up/Down) : 176(88/88)
o Aspect Ratio : 16:9
o Screen Size (cm) : 152.5 cm
o Dynamic Contrast Ratio : over 1 million
o Viewing Angle (Right/Left) : 176(88/88)
• Display Features
o Backlight Type : Edge LED
o Display Device : LCD
o Dimming Type : Frame Dimming
• Energy Saving & Efficiency
o Energy Star® compliant : Ver6
o Dynamic Backlight Control : Yes
o Power Consumption (On Mode) for Energy Star : 90.9W
o Power Consumption (Standby Mode) for Energy Star : 0.147W
o Backlight Off Mode : Yes
• General Features
o Hotel Mode Menu : Yes
o Closed Captions (CC) : Yes
o Demo Mode : Yes
o Finish (Surface Color) : Black
o Start Up Sony Logo Display : Yes
o Audio Return Channel : Yes
• Inputs and Outputs
o Analog Audio Input(s) (Total) : 1(Rear)
o Component Video (Y/Pb/Pr) Input(s) : 1 (Rear Hybrid w/Component)
o Audio Out : 1(Rear)
o USB 2.0 : 2 (Side)
o Composite Video Input(s) : 1 (Rear Hybrid w/Component)
o AC Power Input : 1 (Rear)
o HDMI™ Connection(s) (Total) : 4 (2Rear,2Side)
o Ethernet Connection(s) : 1 (Rear)
o MHL : Yes
o RF Connection Input(s) : 1 (Rear)
o Digital Audio Output(s) : 1(Rear)
o HDMI™ PC Input : Yes
• Measurements (Approx )
o TV with Stand (W x H x D) : 1375x851x339 mm/54 1/4x33 5/8x13 3/8 inch
o TV only (W x H x D) : 1375x810x82(45) mm/54 1/4x32x3 1/4(1 13/16) inch
o Package Carton (W x H x D) : 1590 x909 x 170 mm/ 62 5/8 x 35 7/8 x 6 3/4 inches
• Network Features
o Wi-Fi Direct : Yes
o TV Tweet : Yes (Opera)
o Screen mirroring : Yes
o DLNA Content : JPG/ MP3/ WMA/ MPEG1/ MPEG2PS/ MPEG2TS/ AVCHD/ MP4/ WMV
o BIVL (System) : Yes
o Sony Entertainment Network : Yes
o Wireless LAN : Integrated
o Opera Apps (System) : Yes
o Wi-Fi Certified : Yes
o Internet_Browser : Yes (Opera)
• Power
o Power Consumption (in Standby) : 0.2W
o Power Requirements (frequency) : 60Hz
o Power Requirements (voltage) : AC120V
o Power Consumption (in Operation) max. : 182W
• Recycled & Recyclable Materials
o Packaging Materials : Recycled Carton (more than 40%)
• Regulation and Standards Compliance
o VESA® Hole Spacing Compatible : Yes
o VESA® Hole Pitch : 300x300 mm /11 7/8x11 7/8 inch
• Sensing Features
o LightSensor™ Technology : Yes
• TV System
o TV System (Analog) : M
o Number of Tuners (Terrestrial/Cable) : 1(Digital/Analog)
o Channel Coverage (Analog) : VHF: 2-13/UHF: 14-69/CATV: 1-135
o Channel Coverage (Digital Terrestrial) : VHF: 2-13/UHF: 14-69
o TV System (Digital Terrestrial) : ATSC
o TV System (Digital Cable) : Clear QAM
o Channel Coverage (Digital Cable) : CATV: 1-135
o Color System : NTSC
• Video
o Video Signal : 1080/24p (HDMI only); 1080/60i; 1080/60p(HDMI / Component); 480/60i; 480/60p; 720/60p; 1080/30p (HDMI™ only); 720/30p (HDMI™ only); 720/24p (HDMI™ only)
• Video Features
o 3D Comb Filter : Yes
o MPEG Noise Reduction : Yes
o Blinking Type : Frame Blinking
o Wide Mode : Full ; Normal ; Wide Zoom ; Zoom ; Caption ; Normal/Full1/Full2 for PC
o 4:3 Default : Yes
o Digital Noise Reduction : Yes
o Picture Mode : Vivid ; Standard ; Custom ; Cinema ; Graphics
o 24p True Cinema™ Technology : Yes
o Auto Wide : Yes
o CineMotion® Reverse 3:2 Pulldown Technology : Yes
o Live Color™ Technology : Yes
o Advanced Contrast Enhancer (ACE) : Yes
o Motionflow™ Technology : Motionflow XR 240
o LED Motion Mode : Yes
o Clear Resolution Enhancer : Yes
o Intelligent Picture Plus with Signal Booster : Yes
o SimulView™ : Yes
• Weights (Approx )
o TV with Stand : 62.6 lb / 28.4Kg
o TV only : 58.6 lb / 26.6Kg
o Gross (Package Carton) : 77.1lb. / 35.0 kg
• Weights and Measurements
o Packaging (Approx.) : Carton Weight: 77.1 lbs (35.0 kg) Carton Dimensions: 62 5/8 x 35 7/8 x 6 3/4 in (1590 x909 x 170 mm)
o Dimensions (Approx.) : TV Only:54 1/4x32x3 1/4(1 13/16) inch (1375x810x82(45) mm) TV with Stand: 54 1/4x33 5/8x13 3/8 inch (1375x851x339 mm)
o Weight (Approx.) : TV only: 58.6 lbs (26.6 kg) TV with stand: 62.6 lbs (28.4 kg)
