YAMAHA DTS HIGH END AMPLIFIER FULL FRESH.

FULL FRESH.

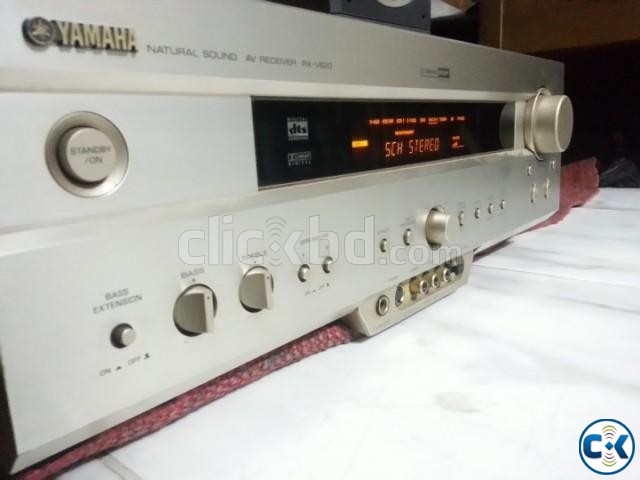

ORIGINAL PICTURE IS UPLOADED.

BRAND NEW CONDITION.

26 SOUND FIELD MODES -- INCLUDING 70mm CINEMA DSP, TRI-FIELD PROCESSING DSP

Specifications

Minimum RMS Output Power per Channel MAIN, 20Hz-20kHz, 0.06% THD, 8 ohms - 100W + 100WCENTER, 20Hz-20kHz, 0.06% THD, 8 ohms - 100WREAR, 20Hz-20kHz, 0.06% THD, 8 ohms - 100W + 100W

Dynamic Power per Channel MAIN, 8/6/4/2 ohms - 130/150/190/240W

Dynamic Headroom 8 ohms - 1.3dB

Damping Factor MAIN L/R, 20Hz-20kHz, 8 ohms - 80 or more

Input Sensitivity/ Impedance PHONO MM - 2.5mV/47k ohmsCD, etc - 150mV/47k ohms

Maximum Input Signal Level PHONO MM, 1kHz, 0.05% THD, (Effect on) - 100mVCD, etc (Effect on) - 2.2V

Output Level/ Impedance REC OUT - 150mV/900 ohmsSUBWOOFER(EFFECT OFF, MAIN SP:SMALL)MONO - 4.0V/1.2k ohms

Headphone Jack Rated Output/Impedance CD, etc, - 400mV/560 ohms

Frequency Response (10Hz-100kHz) CD, etc, MAIN L/R - +0/-3.0dB

RIAA Equalization Deviation (20Hz-20kHz) PHONO MM - 0 +/- 0.5dB

BASS Boost/Cut - +/-10dB (50Hz)

TREBLE Boost/Cut - +/-10dB (20kHz)

Bass Extension +6dB (60Hz)

Filter Characteristics SUBWOOFER OUT: LPF - fc=90Hz, 18dB/octMAIN, CENTER, REAR SP SMALL: HPF - fc=90Hz, 12dB/oct

Total Harmonic Distortion (20Hz-20kHz) PHONO MM to REC OUT (1V) - 0.02
