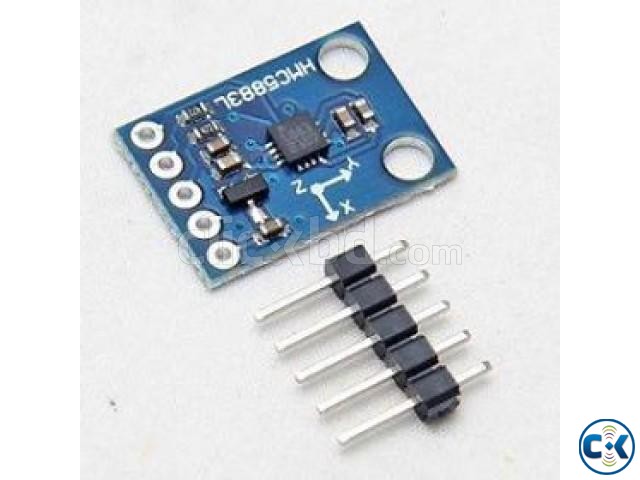

HMC5883L Triple Axis Compass Magnetometer Module This is a breakout board for Honeywell’s HMC5883L, a 3-axis digital compass. Communication with the HMC5883L is simple and all done through an I2C interface. There is no on-board regulator, so a regulated voltage of 2.16-3.6VDC should be supplied. The breakout board includes the HMC5883L sensor and all filtering capacitors as shown. The power and 2-wire interface pins are all broken out to a 0.1" pitch header. Features: Simple I2C interface 2.16-3.6VDC supply range Low current draw 5 milli-gauss resolution Dimensions: 0.7x0.7" (17.78x17.78mm) |
