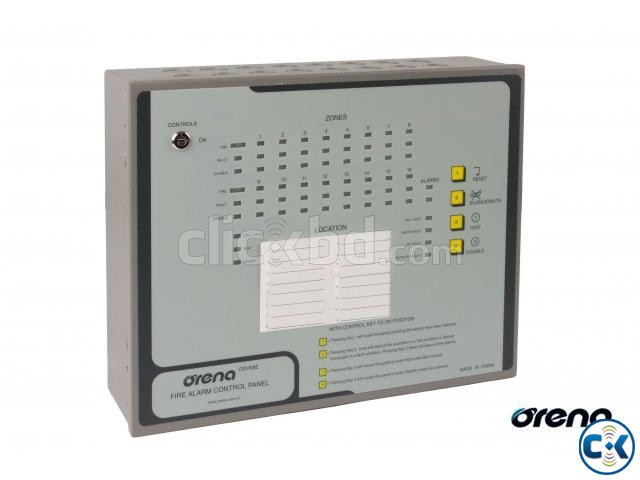

16 Zone Fire Alarm Control Panel
Lowest price in Bangladesh:
Highlights
- New/Used: new
- Brand: orena
- Type: security product
Seller info
Sold by:
Germany Computer and Telecom
Member since:
10 Mar 2014
Location:
Dhaka Dhanmondi
Safety tips:
Don’t pay in advance
Meet in a safe & public place
Meet in a safe & public place
Description
DESCRIPTION for 16 Zone Fire Alarm Control Panel price in Bangladesh
|
Product Detail ------------------------------------- • Place of Origin: Guangdong, China (Mainland) • Brand Name: ORENA • Model Number: ODH16E -------------------------------------- Product Overview : ---------------------------- The ODH16E Conventional Fire Alarm Control Panel is a 24volt, 16 zone, Class B, Conventional Fire Alarm Control Panel. It is designed exclusively to meet the latest market requirements and microprocessor technology, with stand-by batteries (two sealed acid storage batteries) and reserved space for installation. It has functions of operation indication, fault indication, alarm indication and cable checking for short circuit or broken circuit. Characteristics: ----------------------- Style B (Class B) Initiating Device Circuits (IDCs) accept two-wire smoke detectors and any normally-open contact devices One set of volt free changeover contacts operable on fire One set of volt free changeover contacts operable on fault Non-latching zones facility Class change input for remote control Zone and alarm disablement 28V 125mA fused supply permanently available 28V 300mA fused supply available for fire alarm bells or sounders Passive repeater available Specifications: ---------------------- - AC Power : AC220V±10% 50Hz, 2.0 amps, minimum 14 AWG wire (2.0 mm²) with 600- volt insulation. - Battery : Sealed lead-acid batteries, - Maximum battery charger capacity : 4AH battery - Zone Capacity : can be connected with 20 fire detectors and infinite manual call points - Fire & Fault Contact Outputs : 1.0 amps DC24V or AC125V - Using environment : Temperature: 0°C~50°C - Related Humidity : ≤95% (40±2°C) - Dimensions : 265×335×87mm (length × width × depth) ---------------------------------------------- * 1 Year Replacement Warranty * Expert Technical Team * 24x7 Support * Quality Assured * Service all over Bangladesh ---------------------------------------------- Address: 37-38, Block-B, Level-6, Bashundhara City, Dhaka-1205 Facebook Page - https://www.facebook.com/gctlsecure Web- www.gctlnetworking.com |
