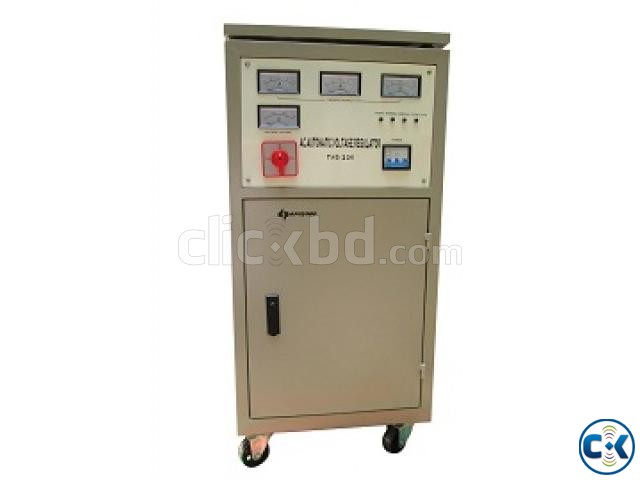

30 kVA Voltage Stabilizer

Overview :

SBW three-phase power automatic compensation regulator is applicable when the external power supply network voltage fluctuations or load changes caused by voltage fluctuations, can automatically maintain output voltage stability. This series of products compared with other types of regulators, with large capacity, high efficiency, no waveform distortion, stable voltage regulation, etc., applicable to a wide range of load, can withstand instantaneous overload, long-term continuous operation, manual / automatic switch, set Overvoltage protection, phase, phase sequence protection and mechanical failsafe, this machine is small, light weight, easy to install, reliable operation. (Score display, instrument instruction types).

Using :

widely used to ensure that all the required voltages normal occasions post offices, stores, elevators, hospitals, schools, printing, textile, securities and large and medium-sized industrial and mining plant, part of the power supply and important equipment and facilities.

SPECIFICATIONS:

Input voltage : three-phase four-wire 300V-456V.
Output voltage : Three-phase Three phases: 380V
Output Accuracy : 1-5% (Adjustable Adjustable)
Frequency : 50Hz / 60Hz
Efficiency : ≥95% (power level 50kvA on)
Response time : ≤1.5S
Ambient temperature : -10℃～+40℃
Insulation resistance : ≥5MΩ
Overload : Double rated current, one min.
Waveform distortion : No additional waveform distortion
Protection : Overvoltage, overcurrent, phase, phase sequence
