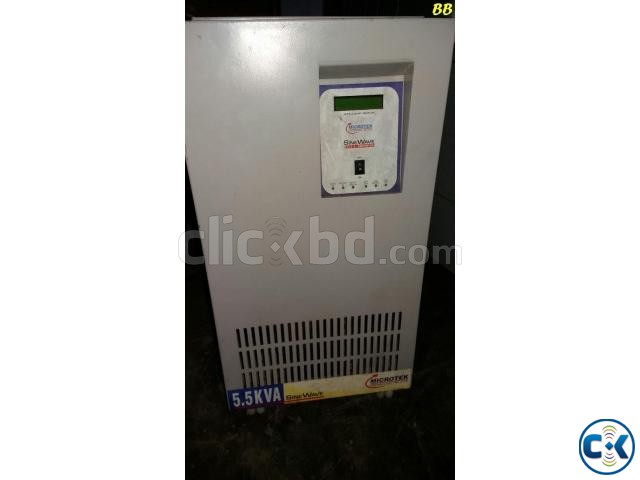

Microtek SineWave 5.5 KVA Inverter

Salient Features
• MICRO Processor / DSP based PWM Technology using IGBT
• Best Suited for most High Capacity Sophisticated Appliances
• Advanced Battery Management (ABM) for Longer Battery Life & Quick Charging
• LCD Panel Display for Status and Faults / Auto Self Test on LCD Display
• Static By Pass Switch for fast Switch Over (optional) / Generator compatible
• Inbuilt TDR (in 5.5KVA & above models) for compressor based application, e.g. Air Conditioners

Technical Specifications

Electrical Specification - Inverter
Output Power : 5500VA
Surge Rating : 16500VA
Output Voltage : 220V
Output Frequency : 50 ± 1Hz
Output Wave Form : True Sine Wave
Peak Efficiency : >82%
Nominal Battery Voltage : 96 V
DC Input Voltage Range : 80V ± 1V to 114 ± 1V
Low Battery Cutout : 80V ± 1V
Total Harmonic Distortion (Resistive Load) : Less than 3%
Overload Handling Capability : 105% for 1 minute + 125% for 5 Seconds with 4 times Auto-Reset
Separate Output with TDR : 3 ~ 5 minutes TDR

Electrical Specification - Charger
Charger Control (ABM) : Advanced Battery Management
Charging Current : 10.0A (settable ± 5.0A)
AC Input Voltage Range : 110V ~ 295V
Max. Battery Boost Level : 114V ± 1V
Max. Battery Float Level : 107V ± 1V
Compatible Battery Types : Lead Acid / SMF
Mains Input Power Factor : 0.85 to unity
*Load may vary depending on the condition of the appliances or manufacturers specs.

Load Chart
LOAD CHART 5.5 KVA Model
Option 1 : 8 Fans + 10 Tube Lights + 1 Water Motor + 1 Refrigerator + 1 Television + 1 Desert Cooler
Option 2 : 5 Fans + 5 Tube Lights + 1 Television + 1 Air Conditioner 1.5 Tonnes Capacity
Other Commercial Applications : Petrol Pump with 2 Nozzle, 1 Photostat Machine, Dental Machine, Clinics, Shops, Showrooms & Offices.
*Load may vary depending on the condition of the appliances or manufacturers specs.
