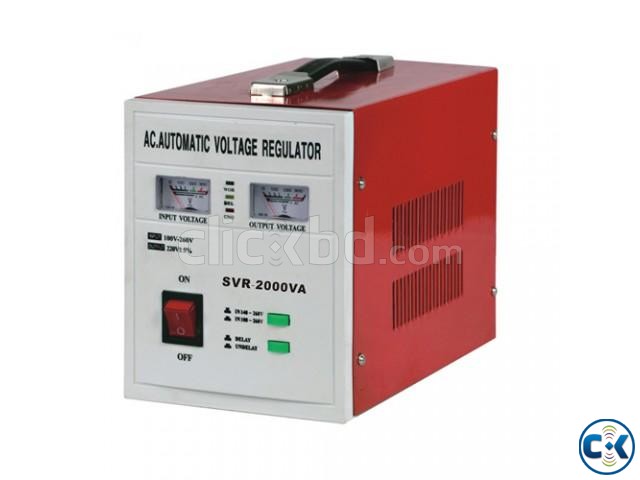

Automatic Voltage Regulation ( Servo AVR ) 2KVA

Product introduction: relay voltage stabilizer 1.imported relay 2.90% efficiency 3.CE ROHS approved 4.2 years warranty

Technical Features:
◎ Input voltage:150-270V
◎ Output voltage:220V±8% 110V±10%
◎ Delay output time:3-7min/3-7sec
◎ Frequency: 50HZ/60HZ
Model: SVR-2000VA
Input:
Phase: Single phase
Voltage: AC150V-270V
Frequency: 50HZ/60HZ
Output:
Phase: 220V±8% 110V±10%
Voltage: 98%
Frequency: 50HZ/60HZ
Over voltage protection: AC 246V±4V
Protection:
Under-volt Optional
Over-volt Optional
Over heat Optional
By pass No:
Delay: 3-7min/3-7sec(optional)
Over load/short circuit yes
Environment:
Operating temperature: -10～40℃
Storage temperature: -15～45℃
humidity: ２０% to 90%
