Power On Water Pump Pressure Controller 20L:

SpecificationsWSF-10Water pump pressure controller

1.High quality

2.Low price

3.Professional technology

4.Fast delivery time

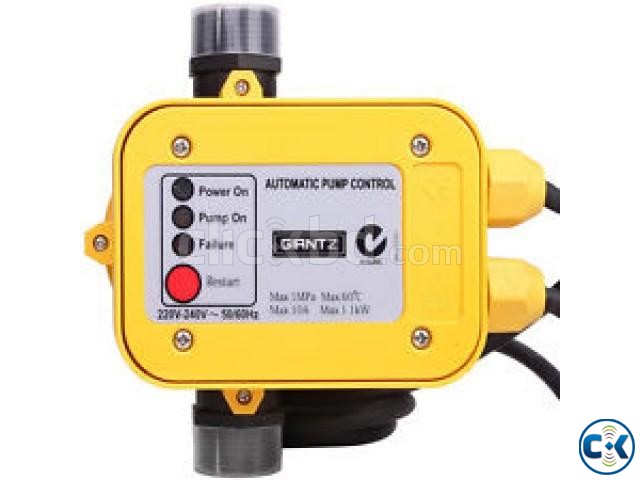

WSF-20 Water pump pressure controller

1.High quality

2.Low price

3.Professional technology

Specifications:

1 Rated voltage: 110V-120V or 220V-240V

(2) Maximum current: 10A

3 Frequency: 50/60Hz

4 Tap Screw: 1 "

5 of protection: IP65

6 Select the starting pressure: 1.5bar or 2.

7 Maximum allowable pressure: 10bar

8 Maximum ambient temperature: 60 °C

USE

1. used in water systems electronic pressure switch.

2.When the pressure becomes weak (faucet open) when the corresponding open pump, or the maximum pressure in the pump under the standard, when the water flow stops (taps closed) when the pump shut down accordingly.

3 .threaded connection: R1 "external thread.

4 .replaced by a pressure switch, pressure tank, check valves and other components of the traditional pump control system.

5. can automatically stop the pump dry.

6. users can request configuration.

7. Application: pump, jet pump, garden pump, water pump, etc.

8. Features: The pump automatic controller is fully electronic intelligent
pump control equipment according to the detected water state,
water pipes and pipe pressure change data to start and stop the pump.
Can completely replace a pressure tank, pressure switch,
water protection device, such as the four-way valve consisting
of traditional systems. electrified parts and pipes complete
isolation and high tightness control box so that the controller
has the traditional unmatched security, integration is designed
so that when you install can save more time and materials.
