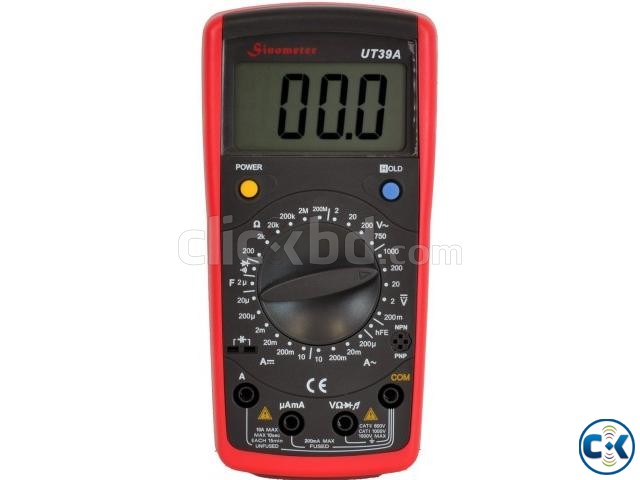

Uni-Trend UT39A Both AC/DC Current Measurement

Uni-Trend UT39A Both AC/DC Current Measurement
(10A/10A) Digital Multimeter with Full Features,Sinometer OEM

Product Description

Color:UT39A

The UT39A is a digital Multimeter with high precision and
accuracy. It comes with a large LCD display with a maximum
reading of 1,999, easy to read even in the dark. It has many
nice features such as Auto power-off, Data hold, Tilt back stand and etc.

Specifications:

Display: max. reading 1999 counts

DC Voltage: 200mV/2/20/200V ± 0.5%, 1,000V±0.8%

AC Voltage: 2V/20V/200V±0.8%, 750V±1.2%

DC Current: 2uA/200uA/20mA/-±0.8%, 200mA±1.5%, 10A±2.0%

AC Current: 200uA ±1.0% 20mA/200mA ± 1.8%, 10A±1.0%

Resistance: 200/2K/20K/2Mohm ± 0.8%, 20Mohm/200ohm ± 1.0%

Capacitance: 2n/200n/2uF ± 4.0%

Continuity checking with buzzer (when resistance is less than 10 ohms)

Diode check

hFE: 1 - 1000

Power source: 6F22 (9V) x 1

Dimensions: 7" X 3 3/4" X 1 3/4"

Weight: 12 Oz (including battery)

Accessories:

Test leads with probes

9V battery (installed)

Thermo probe

User manual
