UNI-T UT501B Megger Multi-function Insulation

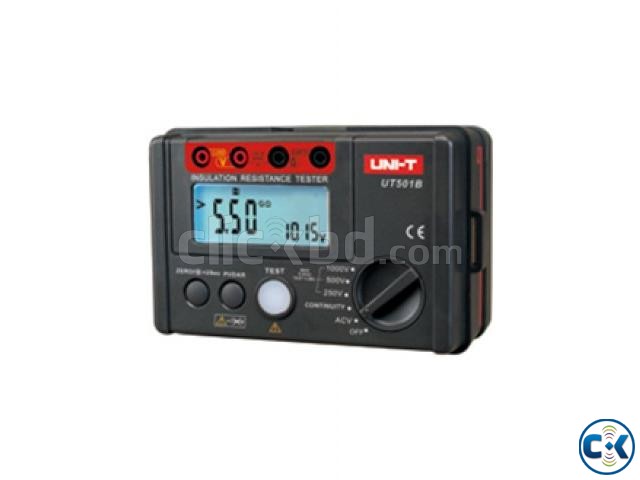

UNI-T UT501B Megger Multi-function Insulation Resistance Tester

Specifications Range

Best Accuracy

Model 　 UT501B

Insulation Resistance(Ω) Test Voltage 250V/500V/1000V 0%~10%

250V 0.00MΩ~99.9MΩ ±(3%+5)

100MΩ~5.5GΩ ±(5%+5)

500V 0.00MΩ~99.9MΩ ±(3%+5)

100MΩ~5.5GΩ ±(5%+5)

1000V 0.00MΩ~99.9MΩ ±(3%+5)

100MΩ~5.5GΩ ±(5%+5)

Load Current 50V(R=50KΩ) 1mA 0%~10%

100V(R=100KΩ) 1mA 0%~10%

250V(R=250KΩ) 1mA 0%~10%

500V(R=500KΩ) 1mA 0%~10%

1000V(R=1MΩ) 1mA 0%~10%

Short Circuit Current 　 200mA） ±(2%+3)

AC Voltage (V) 30V~600V ±(2%+3)

Features

Display Count 　 2000

DAR 60s/15s and 60s/30s √

PI 　 √

Auto Range 　　 √

Low Battery Indication 　 √

LCD Backlight 　 √

Alarm Light Display 　 √

Alarm Buzzer 　 √

High Voltage Indication 　 √

Over Load Indication 　 √

Auto Disharge 　 √

Test Voltage Vice Display 　 √

10MΩ Internal Resistance Test 　 √

General Characteristic

Power 1.5V Batteries（LR6) × 6

LCD Size 70.6mm x 34mm

Product Color Red and Grey

Product Net Weight 500 g

Product Size 150mm x 100mm x 71mm

Standard Accessories Batteries, Probe, Alligator Clip, Test Lead, Gallus

Standard Individual Packing Gift Box, Carrying Bag, English Manual

Standard Quantity Per Carton 20 PCs

Standard Carton Measurement
500mm × 380mm × 330mm (0.063 CBM Per Standard Carton)

Standard Carton Gross Weight 10.5 Kg
