Eco Solvent Printing Machine

Quick Details
Type:
Inkjet Printer
Condition:
New
Plate Type:
Roll Printing
Place of Origin:
Henan, China (Mainland)
Brand Name:
Stormjet
Model Number:
SJ-3180TS
Usage:
Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer
Automatic Grade:
Automatic
Color & Page:
Multicolor
Voltage:
110V/220V
Gross Power:
500W
Dimensions(L*W*H):
2910*860*700mm
Weight:
285KGS
Certification:
ISO & CE
After-sales Service Provided:
Engineers available to service machinery overseas
Printer Head:
Epson DX5
Ink Type:
Water Based Ink, Eco Solvent Ink
Printing Colors:
Double Four Color
Printing Height:
2~5mm
Printing Widthness:
1800mm
Media Feeding Type:
Multi-pinch Rollers Feeding
Color Management:
ICC Based; Denisity & Curves Adjustable
RIP Software:
Main Top, Photoprint, Onyx
Computer System:
Windows XP, Win 7
Humidity:
40~60%
Packaging & Delivery
Packaging Details: In Wooden Box without fumigation
Delivery Detail: 5 Working Days After Customer's Order

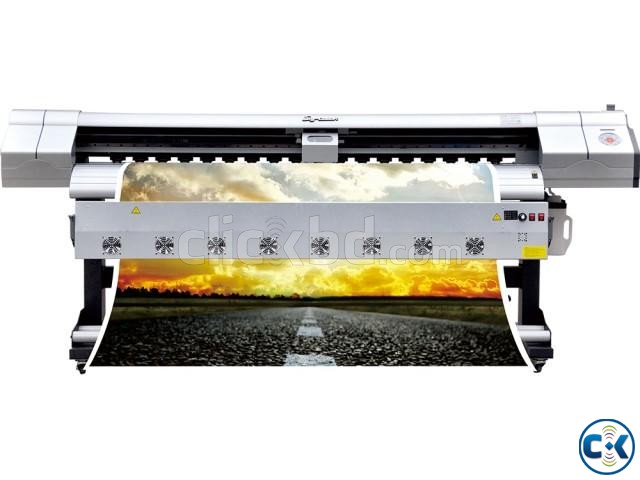

SJ-3180TS Sky Color Eco Solvent Printer

1.8m Sky Color Eco Solvent Printer SJ-3180TS



Characteristics of SJ-3180TS Wide Format Eco Solvent Printer

Servo Motor: LEADSHINE (Famous Brand in China)
Guide Line: HIWIN (Famous Brand in China) or THK (Famous Brand in Japan)
Cartridge: Original Import (Clean, Pump and Moisturize Automatically)
Main Board: Design and Produced by ourselves, it is stability and 15Months Warranty time
Ink Supply System: Bulk Ink Continues Supply System.

Application

1.8m Sky Color Eco Solvent Printer SJ-3180TS





Model No.


Stormjet SJ-3180S


Stormjet SJ-3180TS

Printhead


Type


Epson DX5 (Single)


Epson DX5 (Double)

Nozzles


7*180=1440 Nozzles Per Head

Max Printing Width


70.8 Inch (1800mm)


70.8 Inch (1800mm)

Resolution (DPI)


720*1440 DPI

Color


C M Y K (Double 4 Colors)

Ink Type


Eco Solvent Ink, Water Based Ink

Ink Drop


3.5~27PL Variable

Ink Cartridge


Continuous Ink Supply

Speed


4 Pass


15 Sqm/H


30 Sqm/H

6 Pass


11 Sqm/H


21 Sqm/H

8 Pass


8 Sqm/H


15 Sqm/H

Media Types


PP Paper, Backlit, Sticker, Vinyl, One Way Vision, Banner Cloth, Window Film, Etc.

Feeding and Take-up


Automatic Media Feeding (Standard Item) & Take-up System (Optional Item)

Cleaning System


Automatic Cleaning, Anti-Clogging Flash Function & Capping System

Printhead Height


2-8mm above media adjustable

Heating System


Pre/Post Heater Equipped

Dry System


Dry Fans (Optional Item)

Environment


Working Temperature:20C-28C Humidity:40%-60%

Rip Software


MAINTOP 5.3/PHOTOPRINT 10.5/ONXY10

Interface


USB 2.0

Computer System


Windows 7 / XP

Power


AC 110 / 220V, 50 / 60HZ

Packing Size


2800*860*750mm 260kgs


2860*885*710mm 285kgs
