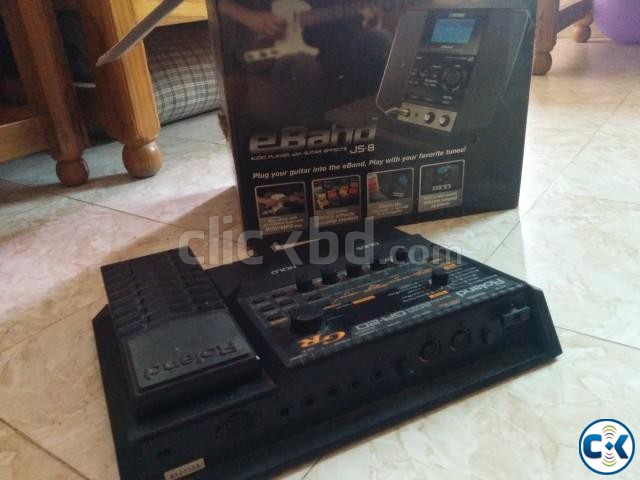

ROLAND GR 20 GUITAR SYNTH

original pic uploaded, almost new. u can play the keyboard with your guitar. call or text: 01911310434.

Plug and Play

Features

Ever wanted to thicken up your guitar sound with a warm synth pad? Or how about a screaming lead sound that puts you in front? The GR-20 Guitar Synthesizer makes playing high-quality synthesizer and instrument sounds from your guitar as simple as 1-2-3. First, attach a GK Divided Pickup (not included) to your steel-stringed electric (no drilling necessary). Second, select the type of sound you want using the Bank knob. Third, choose a sound variation using the Number/Value dial and start playing. With the GR-20, it’s easy to tap into the power of guitar synthesis.

Affordable guitar synthesizer with new sounds, easy interface.
Easy to use: select a sound category (Strings, Organ, Synth, etc.) and play!
Quick editing via Attack, Release, Chorus, and Delay/Reverb knobs
Digital pitch detection for lightning-fast tracking
Includes Roland’s latest sounds like sax, strings, flute, brass, bass and percussion loops
Patch Link enables easy connection with MIDI-capable multi-effects like GT-6
Plug and Play

More Info

Guitar Synth, or Compact Pedal?
With the GR-20 it feels like both. Simply attach a GK Divided Pickup (not included) to your guitar and you can be playing high-quality Roland sounds in seconds. Selecting a sound is like choosing an effect. First, select a sound category using the Bank knob. Categories include Strings/Orchestral, Wind, Brass, Bass/Guitar, Organ/Keyboard, Piano, Synth/Lead, Voice/Pad, Ethnic, and Rhythm/Percussion. Now you can select individual sounds using the Number/Value dial. It’s easy!

Roland’s Finest Sounds with Exceptional Tracking
At the heart of the GR-20 is an advanced sound engine based on Roland’s professional synthesizers. Sounds can be played with up to 48-voice polyphony for full, rich-sounding Patches. And the sounds are equally impressive. From expressive string ensembles to spiritual tabla loops coupled with sitar—all with adjustable attack and release—there’s no limit to what you can do. Sophisticated DSP makes the GR-20’s pitch detection ultra-reliable, so you can strum with confidence.

Take Your Guitar Playing Further
Want to create a sound that’s all your own? Try blending the natural sound of your guitar pickups with the GR-20. Thankfully, a GK Divided Pickup (not included) makes this easy via a larger and smoother GK knob. Imagine playing chords and then slowly fading in a swirling, breathy pad to create intensity. Or how about playing a distorted lead on your guitar with a thick synth lead sound? Now take this a step further with the GR-20’s Patch Link function. This allows you to easily assign GR-20 Patches to match effect Patches in MIDI-capable processors like the BOSS GT-6. It’s the ultimate system for serious guitarists.

Plug and Play

Specs

Sound Generator
1 part
Maximum Polyphony
48 voices
Patches
User: 99
Preset: 469
Display
7 segments, 2 characters (LED)
Effects
MULTI-FX (included in the patches)
Chorus
Delay/Reverb
Connectors
GK IN
GUITAR OUT
MIX IN L
MIX IN R (MONO)
OUTPUT L (PHONES)
OUTPUT R (MONO)
MIDI IN
MIDI OUT
AC IN
Power Supply
AC 14 V (AC Adaptor)
Current Draw
600 mA
Size and Weight
Width
314 mm
12-3/8 inches
Depth
245 mm
9-11/16 inches
Height
63 mm
2-1/2 inches
Weight
1.7 kg
3 lbs. 12 oz.
