TOA Wireless Amplifier-SLCCCY

WA-1822 H

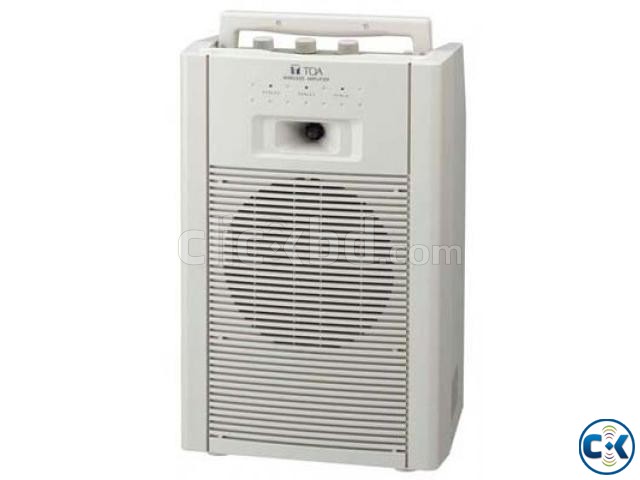

The TOA WA-1822 is a portable meeting amplifier that can accept up to two optional wireless tuner modules (WTU-4800, WTU-3800) of UHF and VHF high band.
Specification
* 0 dB = 1 V
Power Source 230 V AC
Dry cells-8 pcs. (R20P or D size)
Power Consumption AC: 44 W (rated output)
Rated Output AC: 20 W (Max. 40 W with EXT SP.)
DC: 8 W
Battery Life Dry cell battery: Approx. 12 hours
Frequency Response 70 Hz- 10 kHz (deviation 3 dB)
Distortion Under 10 % (rated output)
Input Wired mic: -48 dB*
AUX: -20 dB*
Output External speaker: 8 - 16 Ω/over 20 W of rated input
" "Internal speaker and external speaker"or"external speaker only
(selectable)
Line/Rec: -10 dB*
S/N Ratio Over 70 dB (rated output)
Antenna Rod antenna
Internal Speaker 20 cm full range speaker + tweeter
Operation Temperature AC: -10 ℃ to +50 ℃
DC: 0 ℃ to +40 ℃
Finish ABS resin
Dimensions 298 (W) × 460 (H) × 200 (D) mm
Weight 6 kg
Accessory Power cord (2 m) …1
