Toa Separate Reflex Horn Driver Unit-ECCC

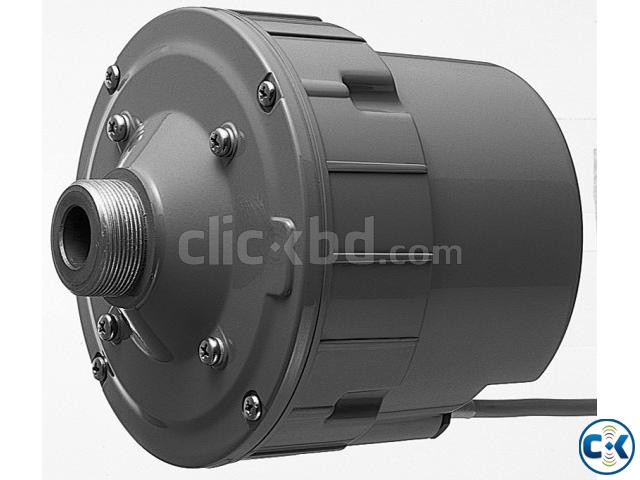

TU-651M
The TU-651M is a highly intelligible driver unit suited to public address announcement applications. Use the driver unit in combination with a suitable horn (optional). Its powder-coated finish and stainless steel screws ensure the unit's weatherproof capability.
Specification
Applicable Horns TH-650, TH-660
Rated Input 50 W
Line Voltage 100 V line or 70 V line
Rated Impedance 100 V line: 200 Ω (50 W), 330 Ω (30 W), 670 Ω (15 W)
70 V line: 100 Ω (50 W), 200 Ω (25 W), 330 Ω (15 W), 670 Ω (7.5 W)
Sensitivity 110 dB (1 W, 1 m) (When operated with JIS C 5504 standard horn.)
Frequency Response 150 Hz - 6 kHz (When operated with JIS C 5504 standard horn.)
Dust/Water Protection IP65 (When a driver is operated with a horn.)
Horn Coupling 1 - 3/8 18 threads (inch screw)
Polarity Hot: Black, Com: White
Operating Temperature -20 %
