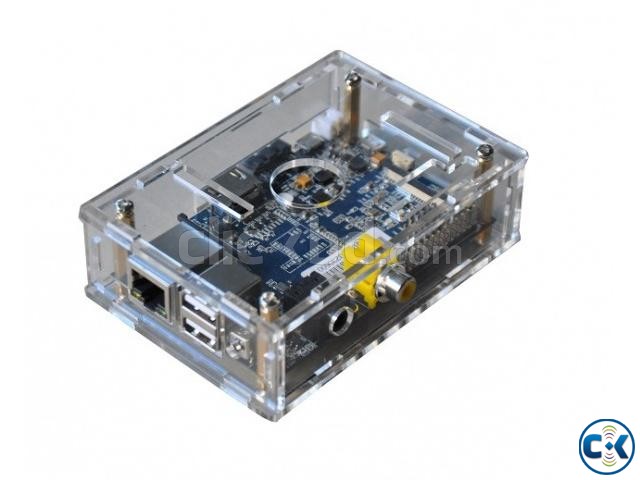

What is a Banana Pi You Just connect any Monitor or CRT / LED / LCD Telivision Banana Pi is an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image, as well as the Cubieboard Image. It uses the AllWinner A20 SoC, and has 1GB DDR3 SDRAM. The Banana Pi is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun and useful tool that you can use to start taking control of the world around you. Hardware specification SoC Allwinner?A20 CPU ARM? Cortex?-A7 Dual-Core (2 x 1.0GHz) GPU Mali400MP2 Complies with OpenGL ES 2.0/1.1 (hardware acceleration support) Memory (SDRAM) 1GB DDR3 (shared with GPU) Onboard Storage SD (Max. 64GB) / MMC card slot UP to 2T on SATA disk drive Onboard Network 10/100/1000 Ethernet RJ45 (optional USB WIFI Dongle) Camera Input A CSI input connector allows for the connection of a designed camera module (available now from LeMaker) Sound Input Mic Video Outputs HDMI, CVBS , LVDS/RGB Audio Output 3.5 mm Jack and HDMI Power Source 5 volt via MicroUSB(DC In Only) and/or MicroUSB (OTG) USB 2.0 Ports 2 (direct from Allwinner A20 chip) Buttons Reset button: Next to MicroUSB connector Power button: Next to Reset button UBoot button (optional): Behind HDMI connector GPIO(2X13) pin GPIO,UART,I2C bus,SPI bus with two chip selects,CAN bus,ADC,PWM,+3.3v,+5v,ground. LED Power Status LED (Red); Ethernet Status LED (Blue); User Define LED (Green) Remote IR Supported OS Supported Apps Package Comes with: Main Bord, casing, Hard Disk Cable, WiFi Dongle, Power Abaptor with Cable, VGA Cable, HDMI Cable, NO Bargain Fixed Price |
