Advance PLC course in Bangladesh

Advance Industrial automation
(PLC,VFI, HMI, Servo Drive, DC Drive)

Course Outline:

BASIC CONCEPT OF AUTOMATION
• What is automation?
• Type of automation?
• What is industrial automation?
• What is industrial automation device?
• Explain the industrial automation device
• Advantage of automation
• Disadvantage of automation
• Application of automation
INVERTER/AC DRIVE
• What is Inverter?
• Advantage of Inverter
• Disadvantage of Inverter
• Type of Inverter
• Application of Inverter
• Explain the block diagram of VFI.
• Explain the drive card of VFI.
INVERTER/AC DRIVE
• What is power supply?
• Type of power supply
• Explain the SMPS or non-leaner Power supply
• Explain the linear Power Supply
• Explain the CPU
• Explain the Connection diagram of VFI with motor
• Programming (parameter set) of VFI and practical Implementation
PLC (PROGRAMMABLE LOGIC CONTROLLER)
• What is PLC?
• History of PLC?
• Advantage of PLC.
• Disadvantage of PLC.
• Explain the block diagram of PLC.
• Explain The Plc input module Circuit diagram.
• Explain the power supply of PLC
• Explain the CPU of PLC
• Explain the power supply of PLC
PLC (PROGRAMMABLE LOGIC CONTROLLER)
• Explain the name of Siemens Logo plc software and Cable
• Explain the Logo plc input output identify system
• Explain the programming instruction for Siemens logo soft. Comfort software
Industrial base Project for Logo PLC:
• I1-Q1 on
• I1-Q on 10sec.-Q2 on
• I1-Q on 10 sec.-Q2 on 10 sec. All off.
• Star-delta programming and practical connection.
PLC (PROGRAMMABLE LOGIC CONTROLLER)
• I1-5sec.-Q1 on 10sec.-Q2 on 10 sec.-All off
• I1-5sec.-Q1 on 10sec.-Q2 on 10 sec.-only Q1 off
• I1-5sec.-Q1 on 10sec.-Q2 on 10 sec.- only Q2 off
• Programming and practical connection.
PLC (PROGRAMMABLE LOGIC CONTROLLER)
• Automatic Rev-Fwd programming and practical connection
• Automatic Rev-Fwd by sensor and practical connection.
PLC (PROGRAMMABLE LOGIC CONTROLLER)
• Model : Siemens logo-OBA3
• Conveyer belt programming and plc practical connection symbol.
• ATS programming by Siemens PLC and practical connection.
PLC (PROGRAMMABLE LOGIC CONTROLLER)
• Model : OBA04
• Model : OBA5
• Automatic car parking programming and practical connection by Siemens PLC.
• Boiler controller Programming by Siemens logo PLC and connection.
• Explain the analog programming system for Siemens Logo PLC
• Input output identify for analog programming using Siemens Logo plc
• Analog program and practical application using logo PLC
PLC (PROGRAMMABLE LOGIC CONTROLLER)
• Explain the name of Siemens S7-200 PLC software and Cable
• Explain the s7-200 PLC input output identify system
• Industrial base digital programming using Siemens s7-200 plc and practical application
PLC (PROGRAMMABLE LOGIC CONTROLLER)
• Explain the analog programming system for Siemens S7-200 PLC
• Input output identify for analog programming using Siemens s7-200 plc
• Industrial base analog programming and practical application using Siemens
• S7-200,CPU-224 and analog module EM231.
PLC (PROGRAMMABLE LOGIC CONTROLLER)
• Explain the name of Siemens S7-300 PLC software and Cable
• Explain the s7-300 PLC input output identify system
• Industrial base digital programming using Siemens s7-300 PLC and practical application

PLC (PROGRAMMABLE LOGIC CONTROLLER)
• Explain the name of Siemens S7-1200 PLC software and Cable
• Explain the s7-1200 PLC input output identify system
• Industrial base digital programming using Siemens s7-1200 PLC and practical application
PLC (PROGRAMMABLE LOGIC CONTROLLER)
• Explain the name of Mitsubishi PLC software and Cable
• Explain the Mitsubishi PLC input output identify system
• Industrial base digital programming using Mitsubishi PLC and practical application
PLC (PROGRAMMABLE LOGIC CONTROLLER)
• Explain the name of LS PLC software and Cable
• Explain the LS PLC input output identify system
• Industrial base digital programming using LS PLC and practical application
PLC (PROGRAMMABLE LOGIC CONTROLLER)
• Explain the name of Omron PLC software and Cable
• Explain the Omron PLC input output identify system
• Industrial base digital programming using Omron PLC and practical application
PLC (PROGRAMMABLE LOGIC CONTROLLER)
• Explain the name of Delta PLC software and Cable
• Explain the Delta PLC input output identify system
• Industrial base digital programming using Delta PLC and practical application
HMI (HUMAN MACHINE INTERFACE)
• What is HMI?
• Advantage of HMI
• Disadvantage of HMI
• Explain the hardware configuration of HMI
HMI (HUMAN MACHINE INTERFACE)
• Explain the name of delta HMI software and Cable
• Explain the input output addressing system of delta HMI
• Explain the instruction of delta HMI
• HMI programming and practical application
COMMUNICATION
• What is industrial communication?
• Advantage of industrial communication

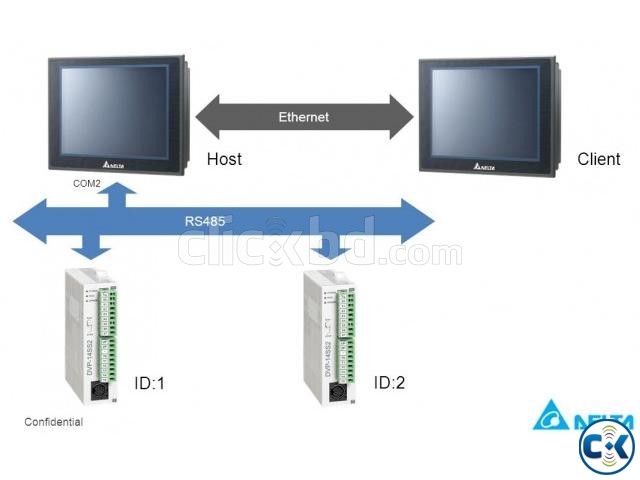

• Type of industrial communication system
INDUSTRIAL COMMUNACATION
• Programming, communication of PLC, VFI and HMI
• Practical industrial communication PLC, VFI ,HMI and motor
Servo Drive:
• What is servo drive?
• Advantage of servo drive
• Disadvantage of servo drive
• Where application of servo drive
• Parameter set and practical application of servo drive and servo motor
• Communication HMI,PLC, Servo drive and Servo motor
DC Drive:
• What is DC drive?
• Advantage of DC drive
• Disadvantage of DC drive
• Where application of DC drive
• Parameter set and practical application of servo drive and DC motor
• Communication HMI,PLC, DC drive and Servo motor
Exame:
