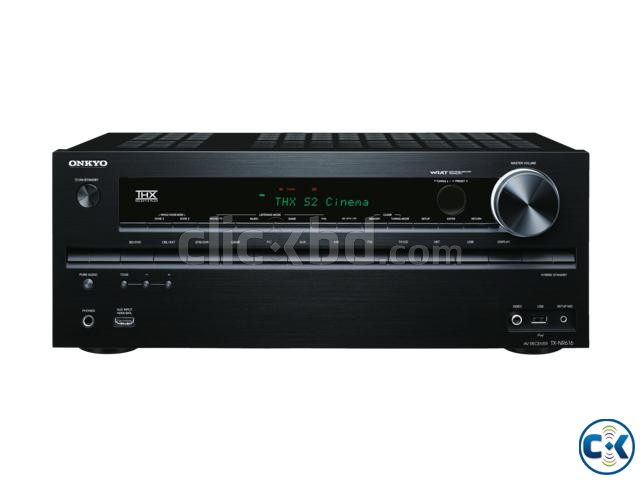

Onkyo NX-616 Network 3D AV receiver Thx full boxed

Escape into THX®-Certified Surround Sound
Movie, music, and gaming enthusiasts can now step up to realistic THX® Select2 Plus™-certified surround sound for less money down
with the new TX-NR616 Network A/V Receiver. Onkyo’s acclaimed WRAT amplifier with three-stage inverted Darlington circuitry
delivers cinema-like power in the home. With Audyssey DSX® expansion, you can add extra Front Height channels for more enveloping
surround sound, while 2EQ® acoustic correction guarantees optimal performance in any room. Eight HDMI® inputs handle
3D content, HD audio, and video display upscaled to 4K with onboard Qdeo™ technology. The MHL/HDMI input lets you connect a
smart phone for smooth 1080p playback on your TV. Wireless home networking, meanwhile, opens up an exciting world of internet radio
and cloud-based music streaming. You can even enjoy your multi-format PC-based music collection over Wi-Fi with an optional USB
adapter. Intuitive system control—including audio distribution in multiple rooms—is provided by Onkyo’s remote apps for iPod touch/
iPhone and Android phone, or press the Quick Set-Up button on the supplied remote for instant mid-program adjustments. Visual input
selection with InstaPrevue™ technology rounds out what is an exceptionally refined and affordable THX receiver.
ADVANCED FEATURES
• THX® Select2 Plus™ Certified
• HDMI® Support for 3D, Audio Return Channel,
DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD,
DTS-HD Master Audio™, DVD-Audio, Super Audio
CD, Multichannel PCM, and CEC
• Three-Stage Inverted Darlington Circuitry
• HDMI Video Upscaling to 4K with Qdeo™ Technology
by Marvell
• MHL (Mobile High-Definition Link) for Smart Phone
Content on HDTV
• Direct Digital Connection of iPod/iPhone via Front￾Panel USB Port
• Picture-in-Picture Input Source Preview with
InstaPrevue™ Technology
• Internet Radio and Cloud Music Streaming Service
Connectivity (Last.fm, MP3tunes, Spotify, AUPEO!,
Simfy, vTuner)*1
• Playback of Audio Files Through Local Network
(MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis,
AAC, LPCM)
• Supports Onkyo Remote Apps for iPod touch/
iPhone*2 and Android Phone*3
• Audyssey DSX® and Dolby® Pro Logic® IIz for
Expanded Surround Channels
• Overlaid On-Screen Display (OSD) with Quick
Set-Up and Home Menu
• Powered Zone 2 and Zone 2/3 Line-Outs for
Distributed Audio Playback in Multiple Rooms
*1 Availability of services depends on region. Some services may require a
firmware update. *2 Compatible with iPod touch (3rd generation or later)
and iPhone 3GS or later. All models require iOS 4.2 or later. *3 Requires
Android OS 2.1 or later.
AMPLIFIER FEATURES
• 160 W/Ch
(6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC);
175 W/Ch (6 Ω, 1 kHz, 1 Channel Driven, JEITA)
• WRAT (Wide Range Amplifier Technology)
• H.C.P.S. (High Current Power Supply) Massive High
Power Transformer
• Discrete Output Stage Circuitry
• Optimum Gain Volume Circuitry
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit
Technology for S/PDIF Audio
PROCESSING FEATURES
• TI Burr-Brown 192 kHz/24-Bit DACs for All Channels
• Advanced 32-Bit Processing DSP Chip
• 4 DSP Modes for Gaming: Rock, Sports, Action,
and RPG
• Advanced Music Optimizer for Compressed Digital
Music Files
• Theater-Dimensional Virtual Surround Function
• Direct Mode and Pure Audio Mode
CONNECTION FEATURES
• 8 HDMI Inputs (1 Front/7 Rear) and 2 Outputs
• 2 USB Ports (1 Front/1 Rear)
• Mass Storage Class USB Memory Playback Capability
• Compatible with Optional UWF-1 Wireless LAN
Adapter via USB
• HDTV-Capable (720p/1080i) Component Video
Switching (1 Input and 1 Output)
• 5 Composite Video Inputs (1 Front/4 Rear) and
1 Output
• 4 Digital Audio Inputs (2 Optical and 2 Coaxial)
• 6 Analog Audio Inputs
• 2 Parallel Subwoofer Pre-Outs
• Color-Coded, Banana Plug-Compatible Speaker Posts
(Except Zone 2)
OTHER FEATURES
• Audyssey 2EQ® for Room Acoustic Correction
• Audyssey Dynamic EQ® for Loudness Correction
• Audyssey Dynamic Volume® to Maintain Optimal
Listening Level and Dynamic Range
• Hybrid Standby Function to Reduce Power
Consumption
• Independent Crossover Adjustment for Each Channel
(40/50/60/70/80/90/100/120/150/200 Hz)
• A/V Sync Control (Up to 800 ms at 48 kHz)
• Tone Control (Bass/Treble) for Front L/R Channels
• Light Dimming (Display: Normal/Dim/Dimmer;
Volume Knob LED: On/Off)*
• RDS (PS/RT/PTY/TP) (European Model only)
• 40 FM/AM Random Presets
• Certified with Windows® 7 and DLNA Version 1.5
• Firmware Updates via Ethernet and USB
• RIHD (Remote Interactive over HDMI) for System
Control
• Preprogrammed RI (Remote Interactive) Remote
Control
*Note: Volume knob LED is always off when display is dimmed
