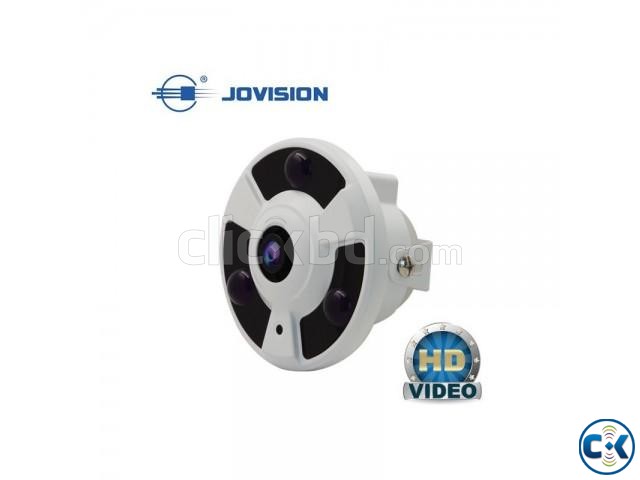

Full HD 3MP 360 ° Fully view IP Network Security camera

The Product Model：JVS-N93-360
Full HD 3MP 360 ° Fully view IP network Security camera.
System functions:
1. Resolution: 3MP, H.264/JPEG
2. Support software update both by network and locally
3. Support 3D noise reduction; make the image clearer and more fluent.
Network functions：
1. Dual-stream, Users can select steam and adjust the resolution ratio, resolution ratio, frame rate, and image level.
2. Support remote view, network user management, network time synchronous
3. Support audio input.
4. Cloudsee Technology, Plug and Play.
5. Support JNVR, Cloudsee, Webcc, CMS, and Cloudsee mobile phone.

Model/Specification JVS-N93-360
Camera Image Sensor 1/3″CMOS
Resolution 1536×1536
Pixels 3.0MP
Compression H.264/JPEG
Frame Rate 25fps～30fps
Bitrate 204Kbps～6Mbps
Synchronization Internal
SNR 55.7dB
Min Illumination 0Lux(IR ON)
Lens Lens Mount M12
Lens 1.42mm
Viewing Angle 185°
Focus Control Manual
Function Exposure Mode Auto
Gain Control Auto
White Balance Auto
Digital noise reduction 3D DNR
OSD Support
Network TimeSyn Support
QR Code N/A
Scheduled Restart N/A
ROI N/A
IR Sensitivity N/A
Defog N/A
Privacy Mask N/A
Motion Detection N/A
Video Adjust N/A
Scene N/A
Day & Night IN/A
Corridor Mode N/A
Electronic screen N/A
Night Self-Adaption N/A
Wide Dynamic Range N/A
Image setting N/A
IP Self-Adaption Support
Alarm E-mail、Client
Remote Operation System、Stream、User、Network Management
External Interface Support Audio Input
Network Ethernet 1 RJ45 10M/100M Adaptive Ethernet Interface
Tri-Stream Supprot
Protocol Support HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,
SMTP,FTP,DHCP,DNS,PPPOE
System Compatibility ONVIF 2.4
Transmission Internal Cloudsee Protocol
Browser IE8+,Chrome18+,Firefox5.0+,Safari5.02+ browsers
Connection 32CH
User Permission Up to 13 users，Three level authority：
Administrator、User、Visitor
General Infrared Lamp 3pcs lattice lamps
IR Distance 3-8m
Waterproof IP66
Power Supply DC 12V
PoE Power Optional
Working Temperature -20℃～+60℃
Working Humidity 10%～90%
Power Day：＜2W Night：＜6W
Material Aluminum
Size((W×H×D)（mm） 120×66
Weight（g） 500g
Installation Ceil Mounting
