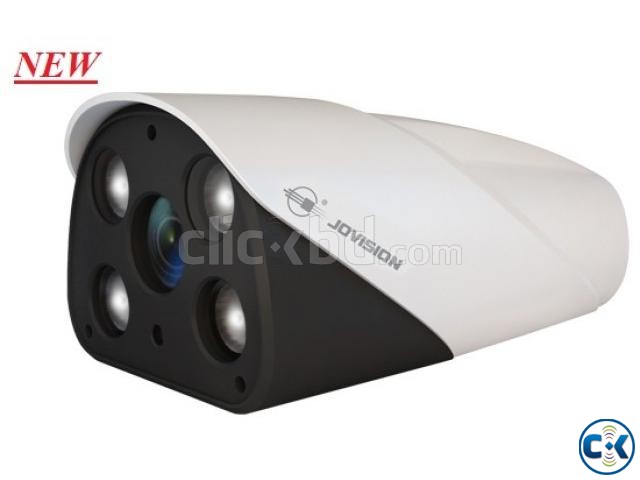

2MP High Resolution IP Camera security camera JVS-N81-HY-S

The Product Model：JVS-N81-HY-S
Brand-new State-of-the-art PCB Design
Comprehensive improvement of protection Level
Optimal Conductive & Heat Dissipation Effect

Jovision IPC Features:
1. Video resolution: 2.0MP.compression standard: h.264/JPEG.
2. 9V-21V Super Wide Working Voltage Range, Optimal surge protection.
3. IR cut filter with auto switch for day/night function.
4. Digital 3D DNR, Digital WDR, ROI, Defog, makes image clearer and more fluent.
5. Tri-streams for resolution, frame rate, video quality adjustment.
6. Support IP self adaptation function.
7. Support ONVIF protocol (2.4), compatible with other manufacturer's products.
8. POE optional.
Note: The picture is for reference only. Please take actual product as standard.

Model/Specification JVS-N81-HY-S
Camera Image Sensor 1/2.7″CMOS
Resolution 1920×1080
Pixels 2.0MP
Compression H.264/JPEG
Frame Rate 25fps～30fps
Bitrate 128Kbps～10Mbps
Synchronization Internal
SNR 54dB
Min Illumination 0Lux(IR ON)
Lens Lens Mount M12
Lens 4mm、6mm、8mm、12mm Optional
Viewing Angle 4mm:105.94°、6mm:64.65°、8mm:48.42°、12mm:34°
Focus Control Manual
Function Exposure Mode Auto
Gain Control Auto
White Balance Auto
Digital noise reduction 3D DNR
OSD Support
Network TimeSyn Support
QR Code Support generate device qr code
for scanning to add
Scheduled Restart Support
ROI Support
IR Sensitivity Adjustable
Defog Support
Privacy Mask Support 4 rectangle areas
Motion Detection Support
Video Adjust Supports contrast, brightness,
saturation, sharpness adjustment
Scene Support Indoor、Outdoor、Default、
Soft scenes
Day & Night IR cut filter with auto switch，
Support Color to Black
Corridor Mode Support
Electronic screen Supprot Exposure time setting,
solve view electronic screen problem
Night Self-Adaption Support
Wide Dynamic Range Digital WDR
Image setting Mirror、Rotate
IP Self-Adaption Support
Alarm E-mail、Client
Remote Operation System、Stream、User、Network Management
External Interface Support Audio Input
Network Ethernet 1 RJ45 10M/100M Adaptive Ethernet Interface
Tri-Stream Supprot
Protocol Support HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,
SMTP,FTP,DHCP,DNS,PPPOE
System Compatibility ONVIF 2.4
Transmission Internal Cloudsee Protocol
Browser IE8+,Chrome18+,Firefox5.0+,Safari5.02+ browsers
Connection 32CH
User Permission Up to 13 users，Three level authority：
Administrator、User、Visitor
General Infrared Lamp 4 Lattice Lamps
IR Distance 20m～70m
Waterproof IP66
Power Supply DC 12V
PoE Power Optional
Working Temperature -20℃～+60℃
Working Humidity 10%～90%
Power Day：＜3W Night：＜6W
Material Aluminum
Size((W×H×D)（mm） 108.3×90.5×174.3
Weight（g） 687g
Installation Rack Mounting
