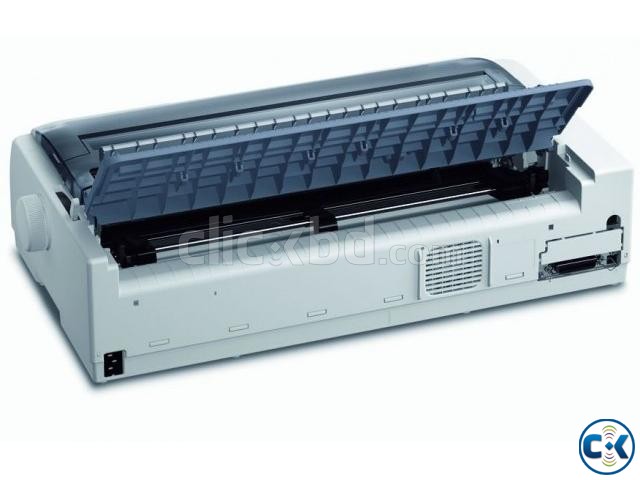

OKI 24 Pin Dot Matrix Printers ML5791eco

Key specifications

Print speed(cps): High Speed Draft: 576cps (12cpi), 480cps (10cpi); Draft: 540cps (15cpi), 432cps (12cpi), 360cps (10/20cpi), 309cps (17.1cpi); Letter Quality: 240cps (20cpi), 206cps (17.1cpi), 180cps (15cpi), 144cps (12cpi), 120cps (10cpi)
Number of copies: Up to 1 original + 5 copies

Full specifications
Printing Characteristics

No of pins: 24
Columns: 136 (10cpi); 272 (maximum in compression mode)
Character pitch: 5/6/7.5/8.5/10/12/15/17.1/20 pitch and proportional
Print speed(cps): High Speed Draft: 576cps (12cpi), 480cps (10cpi); Draft: 540cps (15cpi), 432cps (12cpi), 360cps (10/20cpi), 309cps (17.1cpi); Letter Quality: 240cps (20cpi), 206cps (17.1cpi), 180cps (15cpi), 144cps (12cpi), 120cps (10cpi)
Typeface and Font: HSD, Draft, Courier (scalable), Roman (scalable), Swiss (scalable), Swiss Bold, Orator, Gothic, Prestige, OCR-A, OCR-B
Typestyle: Emphasised, Enhanced, Double Width, Double Height, Italics, Outline, Shadow, Superscript, Subscript, Underline
Built in barcodes: UPC-A, UPC-E, EAN8, EAN13, Code39, Interleaved 2of5, Code128 (A/B/C), CODABAR (NW-7), POSTNET, Industrial 2of5, Matrix 2of5

Interfaces and Emulations

Interface: IEEE 1284 parallel interface, USB 2.0 (full speed)
Optional interface(s): Ethernet 10/100, Serial RS232C
Emulation: Epson LQ ESC/P2, IBM PPR, IBM AGM
Printer driver: Windows 2000 / XP (32-bit & 64-bit) / Vista (32-bit & 64-bit) / 7 (32-bit & 64-bit) / Server 2003 (32-bit & 64-bit) / Server 2008 (32-bit & 64-bit) / Server 2008 R2 (64-bit)
Utilities: Status monitor, Button setup utility, Menu setup utility, TOF setup utility, Network setup utility, LPR utility

Paper Handling

Standard: Cut Sheet (single sheet), Continuous Paper (single-part, multi-part), Envelope, Card
Continuous paper: Width: 76.2 - 406.4mm / Length: 76.2 - 558.8mm
First printable line (from top of page): Continuous: 2.12mm; Cut sheet: 0.5mm
Number of copies: Up to 1 original + 5 copies
Continuous paper thickness: Front/rear push feed: 0.36mm; Front/rear pull feed & front/rear push-pull feed: 0.44mm; Bottom pull feed: 0.48mm
Standard paper handling: Manual insertion: Front or rear in, top out; Push Tractor: Front or rear in, top out; Pull tractor: Front or rear or bottom in, top out
Optional paper handling: Single Bin Cut Sheet Feeder, Push Tractor (front/rear feeds), Pull Tractor (bottom feed)

General Features

Input buffer 128Kbytes
Power supply Single phase 220 to 240VAC, +/- 10%
Power consumption: ISO/IEC 10561 Letter, Roman, Range1: 52W; Sleep mode (no options attached): 1.5W
Noise level Normal: 57dB(A); Quiet: 52dB(A); Silent mode: 49dB(A)
Dimensions(HxWxD) 191 x 592 x 375mm
Weight 10kg approx
Print head life: 400 million characters
Reliability MTBF: 25,000 hours
Warranty: Free 3 year on-site warranty upon registration within 30 days of purchase. Without registration, the standard pan-European 1 year warranty applies. To register and for T&Cs; visit www.oki.co.uk/warranty
