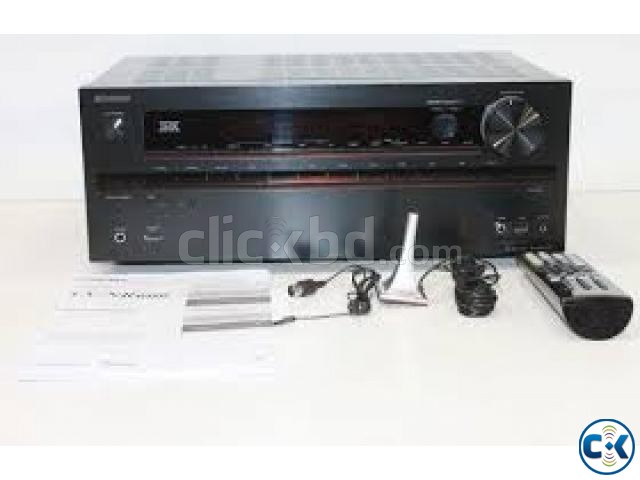

ONKYO AV RECEIVER

Technical Details

Features
ADVANCED FEATURES


THX® Select2 Plus™ Certified
HDMI® Support for 3D, Audio Return Channel, Deep Color™, x.v.Color™, LipSync, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
Three-Stage Inverted Darlington Circuitry
HDMI Video Upscaling to 4K with Marvell Qdeo™
Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
Audyssey DSX™ and Dolby® Pro Logic® IIz for New Surround Channels
Overlaid Graphical On-Screen Display (OSD) and GUI Navigation via HDMI
Playback of Audio Files Through Local Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, LPCM)
Internet Radio and Music Streaming Service Connectivity (vTuner, Last.fm*, Spotify*)
Certified with Windows® 7 and DLNA Version 1.5
2 Parallel Subwoofer Pre Outs
Analog RGB Video Input (D-sub, 15 pin) for PC
Illuminated Volume Knob (White)
* Availability of services depends on region.

AMPLIFIER FEATURES


160 W/Ch at 6 Ω, 1 kHz, 1%, 1 Channel Driven, IEC
WRAT (Wide Range Amplifier Technology)
H.C.P.S. (High Current Power Supply) Massive High Power Transformer
Optimum Gain Volume Circuitry
PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio
PROCESSING FEATURES

Dolby® TrueHD and DTS-HD Master Audio™ Decoding
TI Burr-Brown 192 kHz/24-Bit DACs (PCM1690) for All Channels
Advanced 32-Bit Processing DSP Chip
4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
Advanced Music Optimizer for Compressed Digital Music Files
Mass Storage Class USB Memory Playback Capability
Theater-Dimensional Virtual Surround Function
Direct Mode
Pure Audio Mode
Double Bass Function
Non-Scaling Configuration
A-Form Listening Mode Memory
CONNECTION FEATURES

6 HDMI Inputs (1 Front/5 Rear) and 1 Output
Universal Port for Onkyo Peripheral Devices Such as UP-A1 Dock for iPod/iPhone or UP-DT1 DAB+ Radio Tuner
HDTV-Capable (720p/1080i) Component Video Switching (2 Inputs and 1 Output)
5 Composite Video Inputs (1 Front/4 Rear) and 2 Outputs
4 Digital Audio Inputs (2 Optical and 2 Coaxial)
6 Analog Audio Inputs and 1 Output
Powered Zone 2 and Zone 2 Line-Out for Distributed Audio Playback in Another Room
Color-Coded, Banana Plug-Compatible Speaker Posts (Except Zone 2)
Headphone Jack
OTHER FEATURES

Audyssey 2EQ® for Room Acoustic Correction
Audyssey Dynamic EQ® for Loudness Correction
Audyssey Dynamic Volume® to Maintain Optimal Listening Level and Dynamic Range
Independent Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/200 Hz)
A/V Sync Control (Up to 800 ms at 48 kHz)
Tone Control (Bass/Treble) for Front L/R Channels
Light Dimming (Display: Normal/Dim/Dimmer; Volume Knob LED: On/Off)
RDS (PS/RT/PTY/TP)
40 FM/AM Random Presets
Firmware Updates via Ethernet and USB
RIHD (Remote Interactive over HDMI) for System Control
Preprogrammed RI (Remote Interactive) Remote Control
