Desktop Motherboard Repair Course

Desktop Motherboard Repair Course

Desktop Motherboard

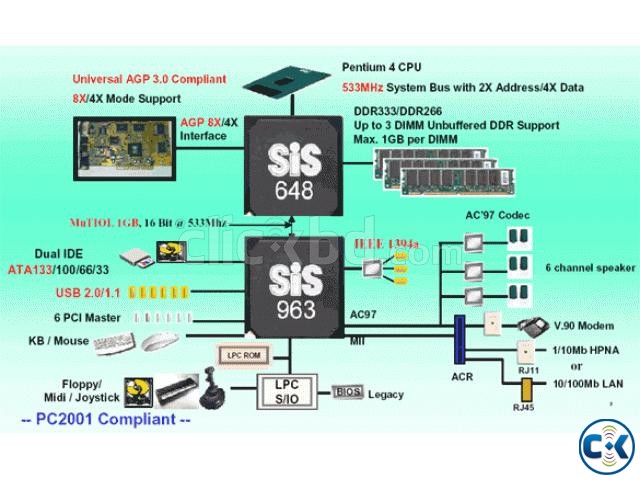

⦁ Motherboard Block Diagram, Function And Main Ics Detail Work Theory And Practicle Idea
⦁ Main Signals Of Motherboard And How Motherboards Work Different Ic List
⦁ Motherboard Brands (Intel, Asus, Gigbyte, Mercury, Msi, Etc)

1. Cpu Type (Lga775,Duals730,Quodslot2, Slot1, Slot7etc)
2. North Bridge (Nforce, Amd, Sis, Vt, I845, I875)
4. South Bridge (Sis, Vt, Intel, Nvdia)
5. I/O Controller Ic (Ite, Winbond, Fdc, Smsc, Smart Etc)
6. Vrm- Voltage Regulator Module Ic (Rtl, Adp, Winbond, Etc)
7. Vrm- Voltage Regulator Module Mosfet(-Chn017nf, Hap117,
8. B5to3gh, F3711s,Nikos Etc)
9. Clock Generator Ic(Winbond, Ics, Etc)
10. Serial Port Ic(Gd75232, St75185, Etc)
11. LanIc (3com,Realtech, Marvel, Etc)
12. Audio Ic (Crystal, Alc, Creafve, Etc)
13. Bios (Sst, Winbond, Intel, Etc)
14. Mosfet (92039, 70120h, Is313w, 537, Fr3704, Etc)
15. Socket (Smps, Idi, Cpu Fan, Cmos, Cfll, Ect)
16. Connectors (Vga, Ps2, Vsb, Keybord, Sound, Lpt, 17. Serial, Lan, Ect)
18. Smd Component (Resistor Capacitor, Transistor, Diod, Fuse, Coil, Etc)
19. Crystal (14.318 Clock , Etc)

Bangladesh Zoom
Farmgate, Dhaka-1215, Bangladesh
Md. Ariful Islam (Kajol).
Mob: +88-01629-103851, +88-01534-559037
E-mail: [email protected]
Skype: kajol555usa
