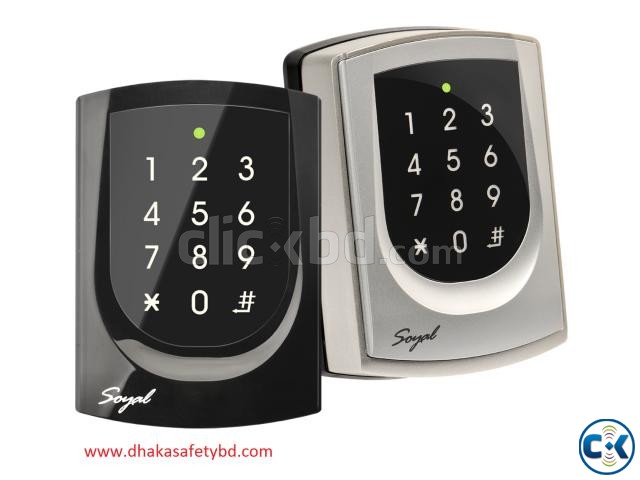

Soyal-AR725 E Time Access Control / Attendance System

Frequency 125kHz or 13.56MHz or Dual Band (125kHzz+13.56MHz)
Standard 125kHz: EM Standard
13.56MHz: ISO14443A, DESFire(option), PSAM(option), NFC(option)
Reading Range 125kHz: 5~15cm (V2) / 2~5cm (V2-M)
13.56MHz: 2~9cm (V2) / 2~4cm (V2-M)
Power Supply 10~24VDC
Power Consumption < 5W
Communication Interface RS-485 + Ethernet
Data Transfer Rate 9600 bps (N,8,1) + 10/100M Base T
Operating Temperature -20°C to +60°C
Digital Input Egress (R.T.E.) x 2 / Door contact x 2
Relay Output Lock Relay
Lock Relay Time Toggle, 0.1~600 sec.
Alarm Time Toggle, 1~600 sec.
Tamper Switch Limit Switch (Form C)
User Capacity 16,000
Event Log 32,000
External Reader 1 WG Port
Anti-pass-back Yes
Lift Control 64 Floors, 16,000 Users
Serial Port Yes
Real Time Clock Yes
LCD Panel No
Door Bell Button No
Transistor Output Arming LED / Alarm / Duress / WG Lock Relay / Security trigger signal
Protection Standard IP55
Indicator 1 Bi-color LED & 1 Beeper
Keypad Material Illuminated Touch-panel
Housing Material V2: PC
V2-M: Zinc Alloy + PC
Time Zone 63
Operation Mode Stand-Alone / Networking
Color Standard: Black / Gray / Silver
Option: Pearl White / Blue / Green / Yellow / Orange / Red
Dimensions (mm) V2: 110(L) x 79(W) x 26(H)
V2-M: 125(L) x 89(W) x 30(H)
Weight(g) V2: 165±10
V2-M: 510±10
Patent Patent for new type of Relay
Patent Number: M 333650(Taiwan) ZL 2008 2 0055140.9(China
