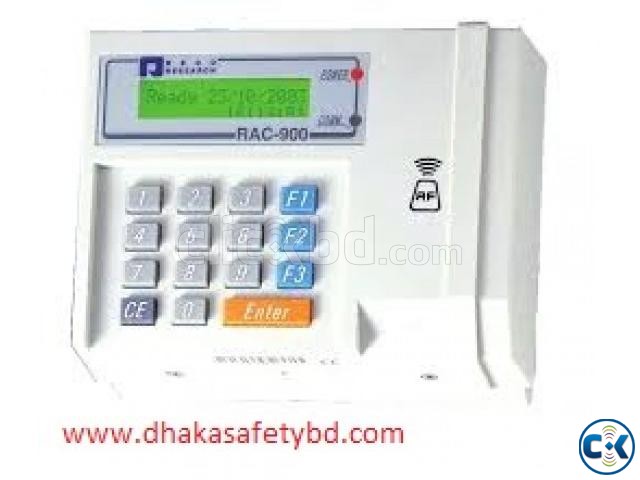

RAC-900PE Access Control / Time Attendance System

Processor 8 Bit
Memory 128K
Input Ports 3 Sensor (Door Sensor, Exit Button, Case Sensor)
Output Ports 2 Relay (Door Lock, Alarm)
Cardholders / Events 4,096 / 2,048 (max)
LED Indicator Power x 1, COMM. x 1
LCD Display 2 lines messages, 16 characters per line, with back light
Keypad 15 keys 0~9, F1, F2, F3, CE, Enter
Real Time Clock Yes
Beep Tone Buzzer
ID Setting Software
Read Format & Range ABA-Track2 / Wiegand26 x 1
* Bar Code type Resolution: 0.15mm;
Scanning Speed:100~1000mm/sec
* Magnetic Type ISO3554 Standard Track 1 or 2 or 3
Scanning Speed: 3~40ips
* Proximity type RF 125 KHz, Effective range : 8~10cm
* Mifare type RF 13.56 MHz, Effective range : 5cm
* HID Type Wiegand 26
Power Output DC5V 100mA / DC12V 100mA (max.) for slave reader
Power Input DC 12V / 1A
Power Consumption 5W (max.)
Comm. Interface RS-232 / RS-422 / RS-485
Comm. Baudrate 9600 bps-N-8-1
Operating Temp. 0° C ~ 50° C / 32° F ~ 122° F
Relative Humidity 20% ~ 80%(Non-condensing)
Dimension 153mm(L) x 120mm(W) x 60mm(H)
