Led outdoor n indoor screen P2.5-10

Place of origin: China
Brand name: SE toshiba
Model number: LR-PH10-32*16-2SD35
Usage: Outdoor
Tube chip color: full color
Display function: video
Pixels: 10mm
Screen dimension: as per your request
Module type: P10 outdoor SMD LED module
Led type: 3535 SMD
Pixel configuration: RGB
Pixels per sqm: 10000dots
Module size: 320*160mm
Brightness: ≥7000cd/sqm
Scan method: 1/2
Fresh rate: ≥ 1500Hz
Resolution rate: 32*16
viewing distance: 10~200m
Packaging & delivery
Packaging details: According to your inquiry and request, honeycomb carton is recommended for fixed installation project to save cost
Flight case is recommended for rental project, as it is more convenient for transportation and dismantling
Delivery detail: 15~20 working days after payment
Features:
First level LED chip from Taiwan Epistar.
With pure golden wire connection in LED
Grand A row material for module frame and mask
4 layers PCB and copper plating thickness > 18mil
Ag alloy solder paster to ensure good soldering on PCB
Stainless steel screws when assembly
Die-casting aluminium material cabinet ensures perfect flatness and no gap between cabinets
Disassembly and assembly are quick and easy
Three years warranty

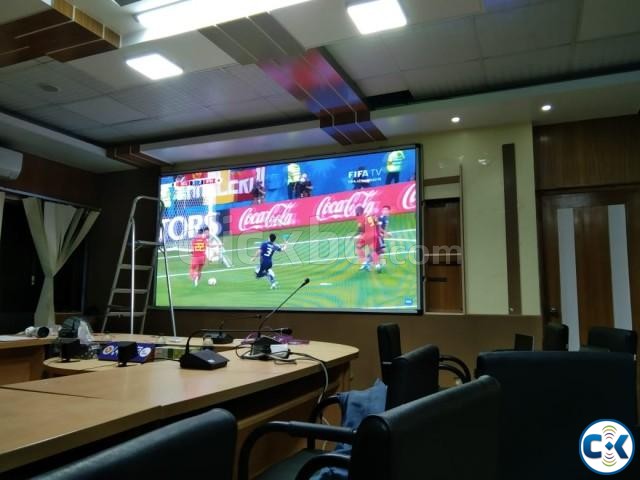

P10 typical applications: Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls postal offices, schools, monitoring, restaurants, entertainment, enterprises
Full color P10 outdoor advertising LED display screen
Module specifications:
Pixel pitch 10mm
Working voltage AC110 or 220V±10%
Power consumption Max 750W/sqm
Average250W/sqm
LED brand Epistar LED Chips
Maximum brightness >7, 000 cd/m²
Pixel configuration 1RGB
Module resolution 32*16 dots
Pixel density 10, 000 pixels/m²
Drive mode 1/2 scanning
Grade level RGB 8192 grade/each
Best viewing distance 10m ~ 200m
(3ft ~ >492ft)
Viewing angle horizontally >160°/vertically >120°
Screen lifetime ≥ 100, 000 hours
Driving IC ICN2026
Refresh frequency ≥1500HZ/s
Change frame frequency ≥ 60Hz
Protection level IP65
Control system ¹ simple LED video control system or advanced LED video processor
Ambient temperature -10°C ~ +45°C(-14°F ~ 113°F)
