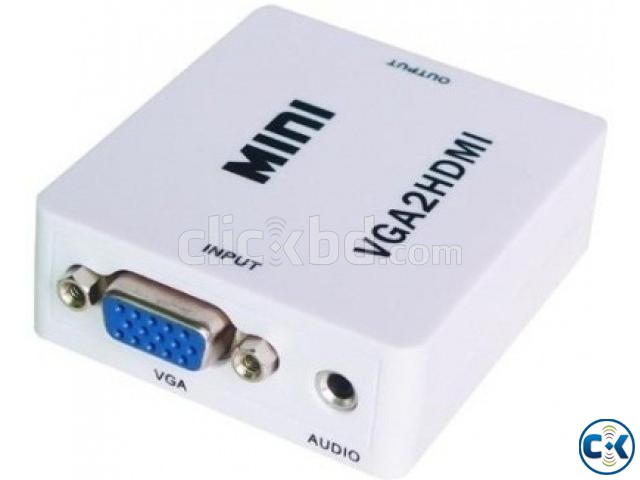

VGA to HDMI Converter Box

Introduction:
The MINI VGA2HDMI 1080P Up Scalar box is designed to upscale analog video signal from PC input source to digital HDMI output, up to 720p or 1080p. Besides video up scaling, the scalar box also converts input audio signal from L/R to digital formats, then output to HDMI combining with the video.
*** We Provide Home Delivery in Dhaka City****
**** ঢাকার বাইরে ক্যুরিয়ার এর মাধ্যম ডেলিভারি করা হয়
SBS Trading-
উত্তরা ব্রাঞ্ছঃ বাড়ি-০১( 1st Floor), রোড- ০৩, সেক্টর- ০৩, জসিম উদ্দিন, উত্তরা- ১২৩০।
অফিস সময়- সকাল ১০ টা থেকে সন্ধ্যা ০৭ টা পর্যন্ত
Features:
1. Scales general PC resolutions to HDMI 1080p output.
2. Provides advanced signal processing with great precision. Colors, resolutions, and details.
3. High quality scaling technology for progressive input resolutions.
4. VGA input Supports up to 1920x1080@60Hz.
Specifications:
Input ports: 1xVGA, 1x3.5mm Phone Jack.
Output port: 1xHDMI
Dimensions (mm):66(D) x55(W) x20(H)
Input Resolution:
640x480@60Hz,800x600@60Hz,
1024x768@60Hz,1280x720@60Hz,
1280x768@60Hz,1280x800@60Hz,
1280x960@60Hz,1280x1024@60Hz,
1360x768@60Hz,1440x900@60Hz,
1600x1200@60Hz,1920x1080@60Hz,

Output Resolution: 1080p/60Hz,720p/60Hz.

PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.
Back Panel: Top Panel: Front Panel:
AUDIO IN------------------Audio Input
VGA IN----------------------VGA Input
USB Power------------------USB Power Input
720P/1080P------------------720P or 1080 output switch
HDMI -----------------------HDMI Output
ZOOM------------------------Scalar
AUTO-------------------------Auto adjust
