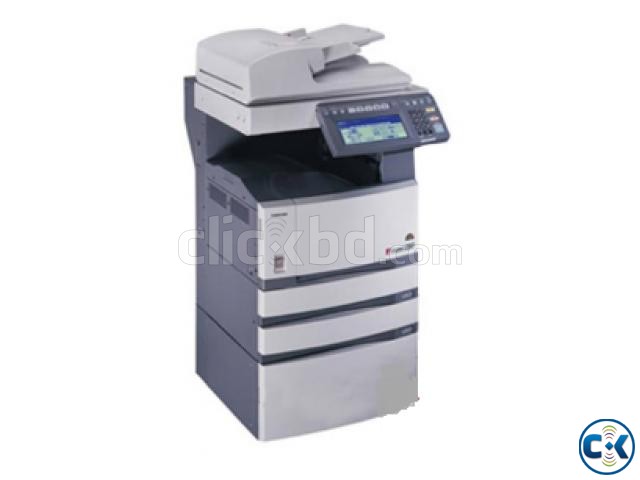

Toshiba E-Studio 232/282 Business Copier Machines

Toshiba E-Studio 232/282 Any Quarry Please call us: 01755601720/01748981082/01755601735

Technical Specification:
Copy Process Indirect Electrostatic Photographic Method (Dry Process)
Type Laser Electronic
Print Resolution 2400 x 600 dpi / 256 gradations
Scan Resolution 600 x 600 dpi
Original Platen Type Stationary Platen
Available Original/Copy Paper Size Statement-R (5.5" x 8.5") to Ledger (11" x 17")
Paper Supply 2-550 Sheet Standard Cassettes; 100 Sheet Stack Feed Bypass
Available Copy Paper Weight Cassettes: 17-28 lbs.; Stack Feed Bypass: 17-53 lbs. (110 lbs. index)
Copy Speed 23
Original Scan Speed Up to 50 PPM; 45 PPM (@600 dpi)
Page Memory/Hard Disk Drive 256 MB / 40 GB HDD
Multiple Copying Up to 999 copies
Reproduction Ratio 25% to 400%
Warm-up Time Approximately 25 seconds
First Copy Time Approximately 5.4 seconds (Letter)
Monthly Copy Volume 74k
Copy Density Control Automatic Toner Density Monitoring and Dispensing from Toner Cartridge
Power Supply and Consumption 115 Volts; 60 Hz; Maximum 1.5 kW
Weight Approximately 165 lbs.

ADU (Automatic Duplexing Unit)
Stack Capacity Stackless (Std.)
Available Original Size Ledger - Statement-R
Paper Weight 17-28 lb.
Print Specifications

Processor 333 MHz
Memory 256 MB
Hard Disk Drive 40 GB
Print Engine Resolution 2400 x 600 dpi (with Smoothing)
Print Speed 23
Drivers Windows® 98, 2000, Me, NT 4.0, XP; Macintosh® OS 8.6, 9.x, 10.x (with PPD); Unix®
Interface 10/100BaseT EtherNet, USB, IEEE 1284, 802.11b Wireless
Network OS NetWare® 4.x, 5.x, 6.x; Windows® 2000, NT 4.0, XP, 2003 Server; Citrix®; Metaframe; Mac
Protocols IPX/SPX, TCP/IP, EtherTalk®, LPR/LPD, IPP, WINS, SNMP, SMB
Printer Language Standard PCL6™, PostScript™3

Scan Specifications

hline

Scan Resolution 150 dpi, 200 dpi, 300 dpi, 400 dpi, 600 dpi
Scan Speed Up to 50 PPM, 45 PPM (@ 600 dpi)
Fax Specifications

hline

Communication Mode Super G3
Number of Lines 1 Standard; 2nd line optional
Modem Speed 33.6 Kbps
Data Compression MH/MR/MMR/JBIG
Transmission Speed Approximately 3 seconds per page
Fax Memory 500 MB Transmission; 120 MB Reception; 40 GB HDD Backup
Memory Transmission 100 Jobs; 1,000 Destinations Max.; 400 Destinations/Job
Scan Speed .7 seconds per page; 50 scans per minute
Gray Scale 256 Gradations
