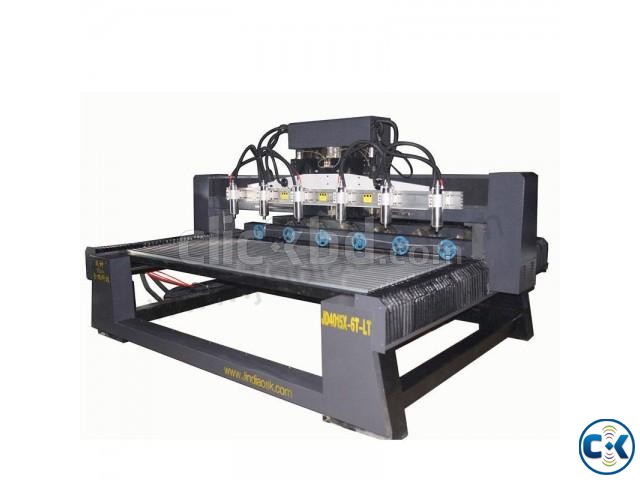

Wood 3D 4 axis CNC Router Center

4015 Wood 3D CNC Router Center

Performance Features:
1. Imported precision ball screw, high precision dividing head, big diameter clamping, can be adapted to different sizes of cylindrical material.
2. National patent box-type column.
3. High-precision drive systems.
4. With power off memory function, power outages continued carving and other user-friendly features to ensure the processing in good order.
5. Advanced CNC system, simple in operation and maintenance easily. Optional CNC dividing heads, carving in the back surface, all user-friendly design can meet the diverse needs of customers.
6. Good compatibility. It is compatible with any advanced CAD/CAM software, such as Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD/ Wentai, etc..

Technical Parameters:
Model
ZS-Models
Processing Length
Varies from different model
Chuck Spec.
≤130mm
Max Motion Speed
15m/min
Max Working Speed
10m/min
Spindle Power
800W~2.2K frequency water-cooling Spindle
Spindle Rotational Speed
6000 ~ 24000 rpm/min
Working Voltage
AC220V/50Hz
Engraving Tool
￠3.175/4/6mm
Dictate Format
G-Code / HPGL
Positioning Accuracy
±0.03mm
Repeatability
±0.02mm
Controller
NC Studio

Applicable Scope:
Widely used for Roman columns, antique mahogany furniture, round drum stool, pen holder, brush writing, chopsticks, bamboo crafts, three-dimensional crafts, jewelry/ gift ornaments, all kinds of cylindrical products
