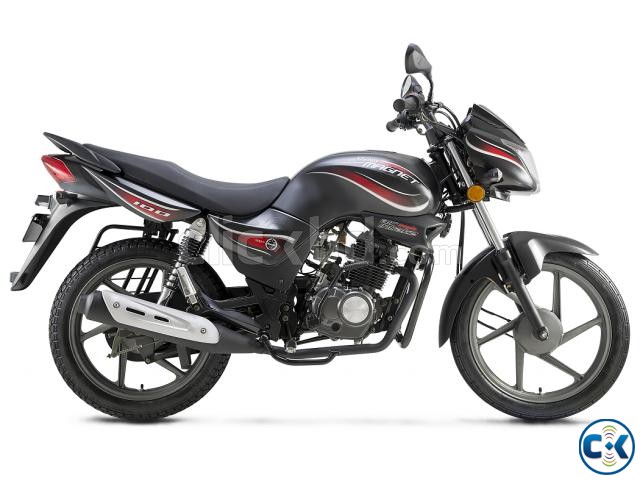

Keeway Magnet-100

Year : 2016
Displacement（cc）: 99.7
Engine : 1-cylinder/4-stroke/2-valve
Bore x stroke(mm) : ø50x50.8
Max.Power : 5.5kW/7500r/min
Max.Torque : 7.6N.m/5500rpm
Compression Ratio : 9.5:1
Fuel system : Carburetor
Fuel control : SOHC
Ignition : C.D.I
Starter : Electric & Kick
Lubrication system : Pressure splash lubrication
Cooling system : Air-cooled
Gearbox : 4-speed
Transmission type final drive : Chain
Clutch Type : Wet multi-plate
Seat height（mm）: 700
Overall Length (mm) : 2010
Overall Width (mm) : 700
Overall Height (mm) : 1080
Ground Clearance (mm) : 130
Wheelbase (mm) : 1290
Frame type : Arch bar truck
Front suspension : Telescopic forks
Front suspension travel (mm) : 110
Rear suspension : Telescopic coil spring oil damped
Rear suspension travel (mm) : 64.4
Fr. tyre : 2.75-17
Rr. tyre : 3.00-17
Fr. Brakes : Drum
Fr. brakes diameter (mm) : 130
Rr. brakes : Drum
Rear brakes diameter (mm) : 130
Top speed（km/h）: 95
Max.Loadage (kg) : 160
Fuel capacity(L) : 12.4
Battery : 12V 9Ah(12N9-4B)

Red & Black color is available.
