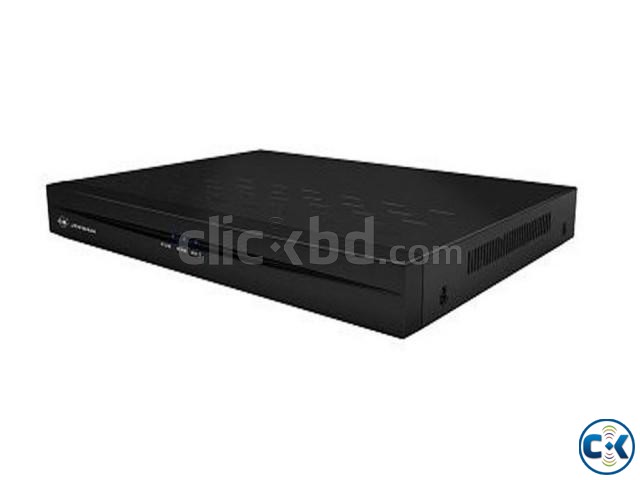

JVS-ND7732-HA

========== Short Description ==========

BRAND: JOVISION

1. Mode: IP
2. Input: 32CH 1080P
3. HDD: 4×4TB

========= Details Information =========

§  Model/Specification:JVS-ND7032-HZ

§  Input: Video Input: 32CH 1080P

§  Output: HDMI: 1CH，Resolution：1920×1080/60Hz、1440×900/60Hz、1366×768/60Hz、
1280×1024/60Hz、1280×800/60Hz、1024×768/60Hz

§  VGA: 1CH，Resolution：1920×1080/60Hz、1440×900/60Hz、1366×768/60Hz、
1280×1024/60Hz、1280×800/60Hz、1024×768/60Hz

§  Audio Output: Support

§  Encoding: Record: 1920×1080/1280×960/1280×720/768×432/704×576

§  Video Encoding: 32CH 1080P/32CH 960P/32CH 720P

§  SyncPlayback: 4CH 1080P

§  Record: Record/Snapshot: Manual Record/Snapshot、Scheduled、Motion Detection Record/Snapshot、Alarm Record/Snapshot、Playback Snapshot

§  Playback Mode: Time List & Event Playback

§  Backup Mode: Video Backup & Picture Backup

§  HDD: Type: 4 pcs SATA Interface

§  Capacity: up to 4T/pcs

§  External: Audio Intercom: Support

§  Net Interface: 1 RJ45 10M/100M/1000M Adaptive Ethernet Interface

§  Serial Interface: 1 RS485 Interface

§  USB Interface: 2 USB 2.0 Interface

§  Alarm In: 6CH（NONC）

§  Alarm Output: 1CH

§  Network: Protocol: TCP/IP、DHCP、UDP、SMTP、NTP、Cloudsee

§  General: Temperature: -10℃～+55℃

§  Humidity: 10%～90%

§  Power Supply: DC 12V

§  : Power: ≤22W

§  Language: Multi-Languages

§  Chassis: Standard 2U Chassis

§  Size(W×H×D): 375×50×270mm

§  Weight: ≤2.1kg
