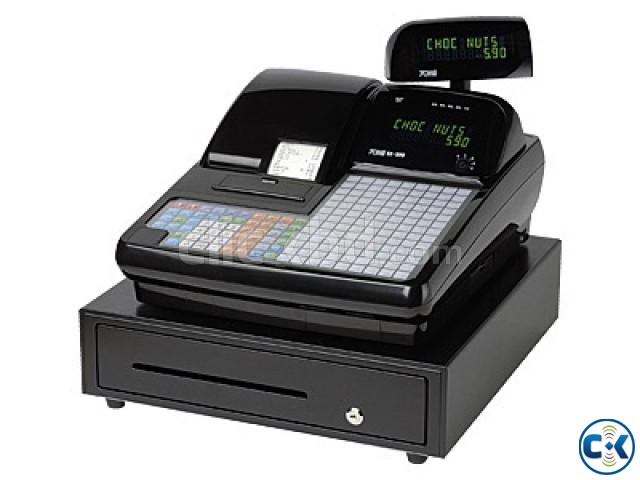

SPECIFICATIONS OF TOWA ELECTRONIC CASH REGISTER MACHINE Display Operator : 2 line fluorescent display Upper : 1 line Alpha numeric 10 digits Lower : 1 line 7 segments 10 digits Customer : 2 line fluorescent display Upper : 1 line Alpha numeric 10 digits Lower : 1 line 7 segments 10 digits Printer ('Drop-in' paper loading mechanism) 2 station 58mm line thermal printer Printing speed: Approx. 14 lines per sec. Keyboard 173 Key position Flat button 'soft' keyboards Power 230 voltages AC +/- 10% Operating temperature 0 to 40°C Dimensions Body : 350 (W) x 429 (D) x 188 (H) mm Drawer(N26) : 410 (W) x 415 (D) x 114 (H) mm Weight Body : 6.6 Kgs Drawer(N26) : 6.4Kgs Total weights : 13.0 kgs Cash Drawer : Separable type Heavy-duty N26 Drawer with media slot Memory backup Approx. 700 hours by rechargeable (Ni-MH battery) Interface (for PC Communication and Bar-code Scanner) RS232 Port x 3 (RJ45 style modular jack interface) RS485 Port x 2 (RJ11 style modular jack interface) SD card slot x 1 FEATURES • Price Look Up (PLU) : 5000 (Up to 25000) • Department : 299 • Clerk : 50 • Cashier : 30 • Group : 99 • Guest : 50 (Up to 3000) • E-Journal : 10000 lines |
