Portable Moisture Meter for Seed

Portable Moisture Meter for Seeds
Why is it good to have a grain moisture meter?

you will know what the quality of your grain is
you will be sure that the moisture of the grain you leave at the collection point is exactly as it should be
you will save time and money as far as deductions at the grain collection point are concerned
you will store even large parts of grain safely for a long period of time
you reduce the risk of moulds occurring in any part of grain
you prevent the grain from heating in silos
you increase profitability of your crops


GMM Grain Moisture meter is characterised by:

accurate and fast measurement
large number of calibrations (30 species)
user-friendliness
modern design
ergonomic shape


The meter is calibrated for 30 species of cereal, oilseed, legume and grass seeds with the following measurement ranges:

rye 7.6% – 35.0%
wheat 7.2% – 35.0%
quality wheat 7.3% – 35.0%
triticale 7.4% – 35.0%
spring barley 8.0% – 35.0%
oat 8.0% – 35.0%
buckwheat 6.5% – 35.0%
horse bean 7.9% – 35.0%
yellow lupine 6.6% – 35.0%
narrow-leafed lupin 7.5% – 35.0%
pea 8.0% – 33.0%
field peas7.8% – 35.0%
canola 4.0% – 30.0%
bean 7.7% – 30.0%
corn 8.0% – 43.0%
shelled sunflower seeds 6.0% – 14.9%
husk sunflower seeds 5.5% – 15.6%
perennial ryegrass 6.4% – 22.0%
red clover 5.7% – 26.3%
white clover 4.8%-25.0%
small kidney beans 8.9% – 30.4%
jack bean 8.9% – 30.0%
mustard 7.3% – 21.6%
panicum 4.0% – 18.6%
soya beans 7.5% – 28.8%
sorghum 9.8% – 28.3%
linseed 5.4% – 20.5%
white rice 7.4%-18.2%
wild rice 9.1%-21.4%
coffee beans 7.7%-30.0%
We can add new calibrations upon customer’s request:

millet cereals 3.2% – 21.5%
cocksfoot 3.8% – 24.3%
cornmeal 8.0% – 25.0%
pearl barley – fine 8.0% – 20.0%
pearl barley – medium 8.0% – 20.0%
pearl barley – thick 9.0% – 21.4%
farina 6.5% – 18.0%
wheat germ 9.9% – 21.0%
monogerm beet root seed 7.7% – 23.3%
monogerm sugar beet 9.0% – 26.2%
meadow fescue 5.0% – 24.3%
milk thistle 8.0% – 35.0%
cherry stones 7.4% – 31.2%
black gram 5.0% – 35.0%
mung bean 5.0% – 35.0%
jute seed 5.0% – 35.0%
onion seed 5.0% – 35.0%
tall fescue 5.5% – 24.5%
shelled pumpkin seeds 5.8% – 25.0%
zucchini 5.3% – 14.7%
beetroot 7.1% – 19.0%
cucumber 3.7% – 12.4%
broad bean 7.1% – 19.0%
naked oat 9.0% – 20.0%
Buckwheat kasha not roasted 10% – 20%
There is a possibility of extending the list of species. Please contact us, if you’re interested.



How grain moisture is being measured?

DRAMIŃSKI Grain Moisture Tester uses the capacitance measurement method. A reference method used for developing calibration curves, that are permanently stored in the device memory, is a laboratory oven-drying method used in accordance with applicable standards.



What is shortened modification used for?

Dramiński Grain Moisture Tester gives possibility of modifying calibration curves. Tester users can calibrate the device on their own, i.e. modify preset moisture curves for each species, which curves have been created based on comparative studies with the use of an oven-drying method.

Calibration consists in modifying (correcting) tester readings by increasing or decreasing the value of readings for a given species by the same amount within the entire measurement range. Modification is made, if the user finds that for a given species a device tends to overestimate or underestimate the results by a similar value within the entire moisture range.



The set includes:

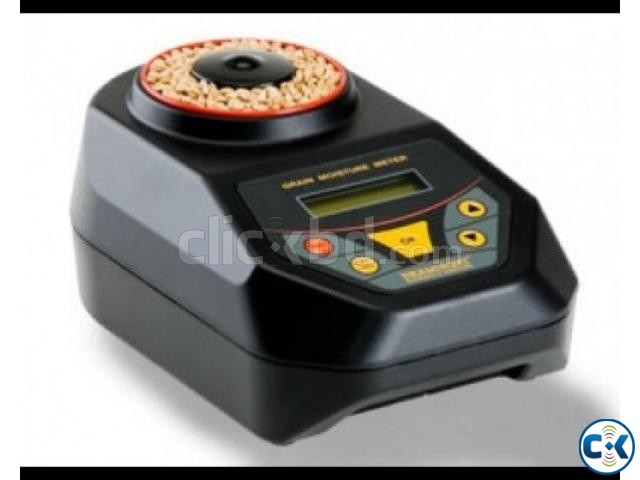

DRAMIŃSKI GMM moisture meter,
special dispenser with a bolt,
1 x 9V 6LF-22 type alkaline battery,
reusable transport packaging (made of plastic),
manual.
\
Technical data

Dimensions 25.0 x 16.0 x 11.5 cm
Unit weight 940 g (with battery)
Sample loading manual, using dosage tube with slider
Sample volume 270 ml
Moisture measurement method capacitive
Power supply 1 x 9 V battery, type 6LF-22
Power input about 12 mA
Estimated working time on one battery pack about 45 h
Battery low indication Automatic
Display LCD, alphanumeric 2 x 16 digits
Keyboard membrane
Measurement resolution temperature – 1°C, moisture – 0,1%
Data modification using keyboard – Data modification option
Range of temperature measurement from 0 °C to about 70 °C
Temperature compensation Automatic
Accuracy of temperature measurement ±1 °C
Accuracy of moisture content measurement ± 1 % in the range up to 10 % of moisture ± 1,5 % in the range above 10 % of moisture and can increase with moisture level
Recommended working temperature from 10°C to 35°C
Recommended storage temperature from 5°C to 45°C
