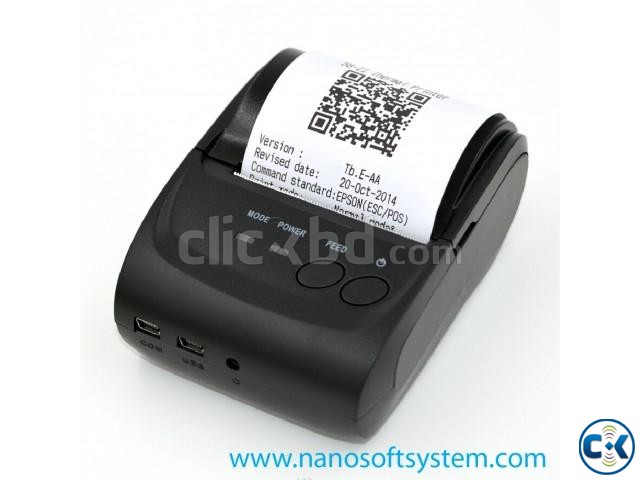

Thermal Receipt Printer M58

Model: M58
Poduct Description
Dimensions (W × D × H) 105 × 75 × 45mm
Weight 134 g
Color Black
Effective print width 48 mm
Printing method Thermal Line Printing
Print command ESC / POS compatible instruction set
Print speed To 90mm/sec
Resolution 8 dots / mm (203DPI)
Print Font In 12X24 / 24x24 in
Column capacity 32 / 16columns
Character size 1.5 × 3.0 mm (width x height) / 3.0x3.0mm (width x height)
Paper Size Diameter of 58.0 mm to ± 0.1mm x40.0
Paper Thickness 0.06 to 0.08 mm
Character set Alphanumeric / Chinese Text
Interface USB, RS-232,Bluetooth (optional)
Flash 256KB
Power Adapter 9V DC/2A
Battery Power The DC / 1500 mA 7.4V; battery can stay in 4-5 days, when it is full of strength, it can print 120-150M Paper
Other Features Paper detection, power detection, manually shut down
Working conditions Temperature: -10Celsius~50CelsiusHumidity: 10%~90%
Storage conditions Temperature: -20Celsius~70CelsiusHumidity: 5%~95%
Device Name Can be customized to select letters and numbers up to 30 ASCII characters.
Password Default Input pairing code "1234"It can be customized. Maximum 6 digitals.
Size of the power plug 3.5 * 1.1 mm
Ordering information P/N Description
OCPP-M05-BB With Bluethooth and battery,supprot Android
OCPP-M05-BB-AI With Bluethooth and battery,supprot Android and IOS
OCPP-M05-UB With Barrery USB Communication,
OCPP-M05-U USB Communication,without BT,Battery
OCPP-M05-B Blutooth Communication,without Battery
OCPP-M05-UC USB Communication,with Car Charger
OCPP-M05-BC Bluetooth Communication with Car Charger
OCPP-M05-C Other Customized
