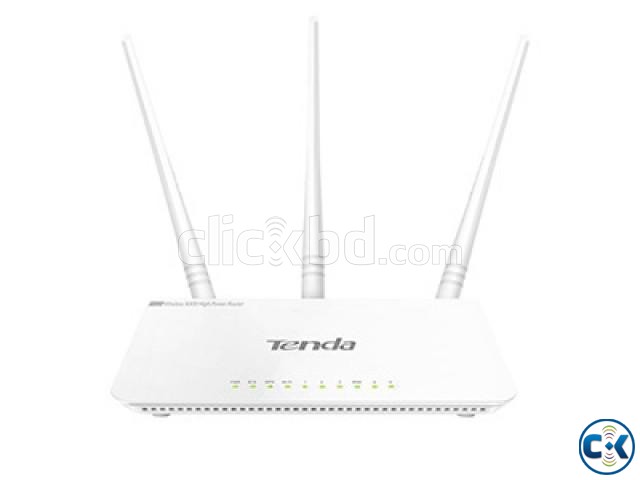

Standard&ProtocolIEEE; 802.3/3U IEEE 802.11n/g/b Interface1 10/100Mbps WAN Port 3 10/100Mbps LAN Ports Antenna3 fixed 5dbi Omni Directional antenas Button1 Reset/WPS Button, 1 TX(adjust the strength of wireless signal) Dimension190mm*122.17mm*32.86mm Frequency Range2.412GHz-2.472GHz Wireless Link RateIEEE 802.11n: up to 300Mbps IEEE 802.11g: up to 54Mbps IEEE 802.11b: up to 11Mbps Wrieless Security64/128bit WEP WPA-PSK WPA2-PSK WPS support Working ModeAP Universal Repeater WISP WDS Bridge Wireless FunctionEnable/Disable Wireless Radio Wireless Access Control Adjustable transmission power Reception Sensitivityb mode:1M -92dBm@8% 11M -87dBm@8% PER g mode:54M -72dBm@8% PER n mode:72.2M -68dBm@8% PER; 150M -68dBm@8% PER Internet Connection TypeDynamic IP、PPPOE、Static IP、L2TP、PPTP、PPPoE Dual Access DHCPBuilt-in DHCP server DHCP Client List Address Reservation Virtual ServerPort Forwarding DMZ Host Parental ControlClient Filter Mac Filter Websites Filter Dynamic DNSNo-IP dyndns VPN Pass-ThroughPPTP L2TP OtherBandwidth Control Mac Address Clone Remote Web Management System Log Package ContentWireless N300 Highpower Router FH304 Quick Installation Guide Ethernet cable Power adapter Resources CD EnvironmentOperating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing CertificationFCC,CE,RoHs PowerInput:100-240V—50/60Hz 0.3A Output:DC 9V==1.0A |
