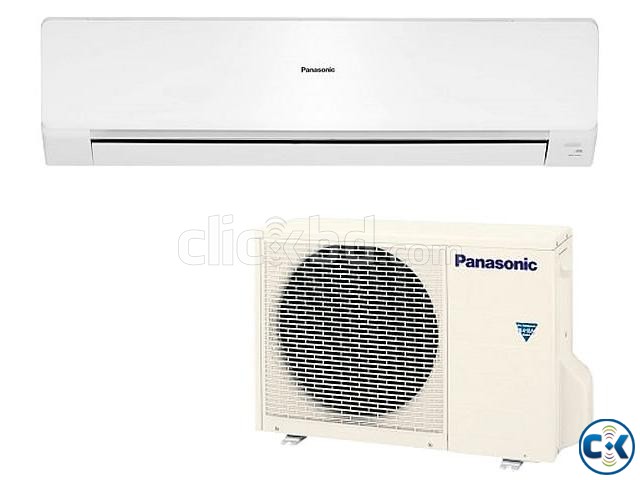

PANASONIC Air Conditioner CS-YC24MKF Air Conditioner CS-YC24MKF Model (50Hz) CS-YC24MKF (CU-YC24MKF) Cooling/ Heating Capacity Btu/h 24000-24000 - kW 7.03-7.03 - EER/ COP Btu/hW 8.76 Electrical Data Voltage V 220-240 Running Current A 12.4 Power Input W 2740 Moisture Removal L/h 4.0 Pt/h 8.5 Air Circulation (Indoor/Hi) m³/min. 18.0 ft³/min. 635 Dimensions Height mm 290 (695) inch 11-7/16 (27-3/8) Width mm 1070 (875) inch 42-5/33 (34-15/32) Depth mm 220 (320) inch 8-11/16 (12-5/8) Net Weight kg 12 (56) lb 26 (123) Refrigerant Pipe Diameter Liquid Side mm / inch Ø 6.35 (1/4'') Gas Side mm / inch Ø 15.88 (5/8'') Pipe Extension Chargeless Pipe Length m 5 Maximum Pipe Length m 15 Maximum Elevation Length m 10 Additional Refrigerant Gas* g/m 30 Power Supply Indoor NOTE * When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.
@@--------------------------------------------------------------------@@ |
