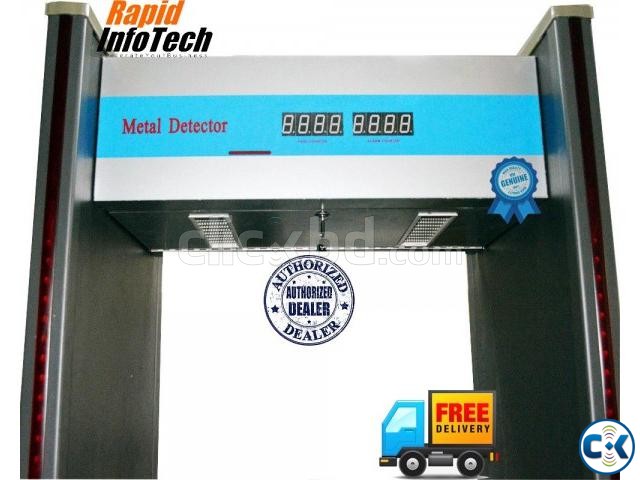

Archway Gate metal detector MCD-300

1.Displaying panel Adopting the ultra-large LED displaying panel, convenient for the work of the operator.
2.Six detecting areasAllocation of six mutual over-lapping detecting areas, simultaneous alarming from multi-areas and accurately ascertaining the location of the metal articles according to the layout of the metal articles.
3.Indication of the alarming areas The LED monitor embedded at both the left and right sides of the gate leaf can accurately indicate the prohibited articles which are hidden at the places of human body with corresponding height. The alarming areas can be indicated by the column lamps at the both left and right gateposts.
4.Adjustable area sensibility:With the highest sensibility. With the range of 0-99, it can automatically adjust the sensibility, pre-set the weight, volume, size and location in respect of the metal articles and eliminate the false alarming for the coin, key, jewelry, leather belt button, etc.

Technical parameters:
(1) standard: “GB 15210-2003. Through-type metal detector door general technical conditions” national standards.
(2) detection procedures: 100 sensitivity adjustment may be required on different occasions to meet separately.
(3) basic safety: meeting the requirements of GB4793.
(4) personal safety: Satisfied NILECJ-0601.
(5) through rate: more than 60 persons / per minute.
(6) Power: 220V AC, 50/60Hz.
(7) Power: 35VA.
(8) working environment: -10 degree-+45 degree
(9) Overall dimension: 2230 mm (high)*820 mm (width)*630 mm (deep).
(10) Channel Size: 2000 mm (high)*700 mm (width)*560 mm (deep).
(11) machine weight: about 80kg.
