TL-WR841HP

HARDWARE FEATURES
Interface 4 10/100Mbps LAN Ports
1 10/100Mbps WAN Port
Button WPS/Reset Button
Antenna 2*5dBi Detachable Omni Directional Antenna (RP-SMA)
External Power Supply 12VDC / 1A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 9.0 x 7.4 x 1.9 in. (227.5 x 187.3 x 48.3mm)
Compatibility NBN - Fibre to the Premises (FTTP)
NBN - Fibre to the Home (FTTH)

For further information on NBN connections please visit: http://www.nbnco.com.au/learn-about-the-nbn/network-technology.html
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 270M: -71dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -91dBm@8% PER
6M: -89dBm@10% PER
1M: -97dBm@8% PER
Transmit Power CE:
<20dBm(2.4GHz)
FCC:
<30dBm
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
Quality of Service WMM, Bandwidth Control
WAN Type Dynamic IP/Static IP/PPPoE/
PPTP/L2TP/BigPond
Management Access Control
Local Management
Remote Management
DHCP Server, Client, DHCP Client List,
Address Reservation
Port Forwarding Virtual Server,Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
OTHERS
Certification CE, FCC, RoHS, NCC, BSMI

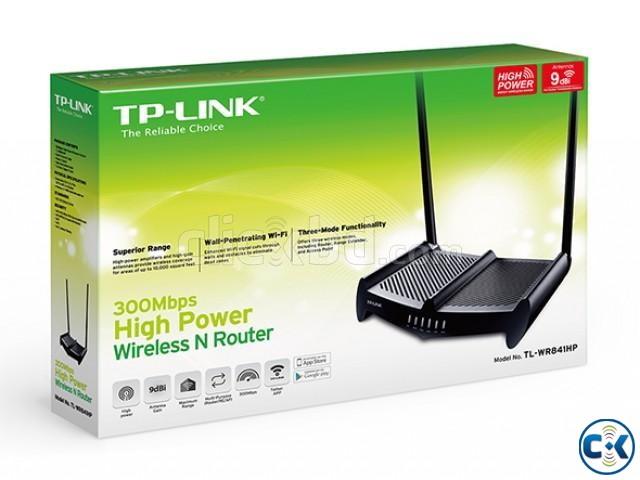

Package Contents 300Mbps Wireless N High Power Router
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
Technical Support Card
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows8/ 8.1/10
MAC® OS, NetWare®, UNIX® or Linux
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
