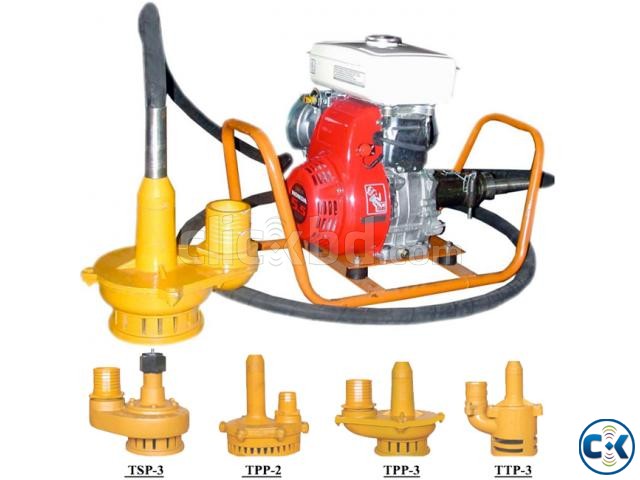

Gasoline Submersible Pump

GASOLINE SUBMERSIBLE PUMP

Brand: TOKU / Robin / Sakura
[ WITH FIXED FRAME ]

Model: TSP-3 / TPP-2 / TPP-3 / TTP-3 / TPP-6
Discharge Diameter mm (inch): 76 (3) / 50 (2) / 76 (3) /150 (6)
Max. (m): 23 / 28
Max. Capacity (liter/min): 1200 / 900 / 3000
Revolution (rpm): 3000 - 3400
Hose (mm × m) (Diameter × Length): Ø32 × 6.0 / Ø32 × 6.0 / Ø32 × 5.0 / Ø32 × 6.0
Flexible Shaft (mm × m) (Diameter × Length): Ø12 × 6.0 / Ø12 × 6.0 / Ø12 × 5.0 / Ø12 × 6.0
Weight (kg): 28 / 25 / 26 / 29

Paddy Field Pump

Model: TTP-6
Discharge Diameter mm (inch): 150 (6)
Max. Capacity (liter/min): 3000
Revolution (rpm): 3000-3400
Hose (mm × m) (Diameter × Length): Ø32 × 6.0
Flexible Shaft (mm × m) (Diameter × Length): Ø12 × 5.0
Weight (kg): 35

Backpack Submersible Pump

Model: TBP-2
Discharge Diameter mm (inch): 50 (2)
Max. (m): 20
Maximum Flow (liter/min): 150
Hose & Flexible Shaft (mm x m) Diameter x Length: Ø28.5 x 1.0
Handle Portion Length (mm): 1,200
HP Standard (HP): 1.3
Discharging Capacity (cc): 30.5
Engine Power (Kw/r/min): 0.81 x 6000
Engine Type: Air-cooled 4-stroke
Starting System: Recoil
Weight (Kg): 15

Drive Unit
Fixed Frame
Turnable Frame
Full Fixed Frame
Electric Drive Unit (TD-M) (Hayashi System)
Hayashi System
Dynapac System
Malaysia System

Warranty: One Year.
